Number of Blocks

Nitrogen gas flow rate

Nitrogen gas pressure

Tube size

Sample concentrator LB-10SC

    Number of Blocks 1
    Nitrogen gas flow rate 15 L / min
    Nitrogen gas pressure 0.02 MPa (Gas needle ≤ 16 pcs)
    0.05 MPa (Gas needle > 16 pcs)
    Needle length 150 mm

Sample concentrator LB-11SC

    Number of Blocks 1
    Nitrogen gas flow rate 330 ml / min
    Nitrogen gas pressure 33 kPa to 69 kPa
    Needle length 150 mm

Sample concentrator LB-12SC

    Number of Blocks 1
    Nitrogen gas flow rate 330 ml / min
    Nitrogen gas pressure 33 kPa to 69 kPa
    Needle length 80 mm
Sample concentrator LB-13SC
    Number of Blocks 1
    Nitrogen gas flow rate 15 L / min
    Nitrogen gas pressure 0.1 MPa
    Needle length 150 mm
Sample Concentrator LB-14SC
    Number of Blocks 1
    Nitrogen Gas Flow Rate 15L/min
    Nitrogen Gas Pressure 0.02Mpa (Gas needle≤16pcs)
    0.05Mpa (Gas needle>16pcs)
    Temperature Range 0 °C to 160 °C

Sample Concentrator LB-15SC

    Number of Blocks 1
    Nitrogen Gas Flow Rate 15L/min
    Nitrogen Gas Pressure 0.1Mpa
    Temperature Range 0 °C to 160 °C

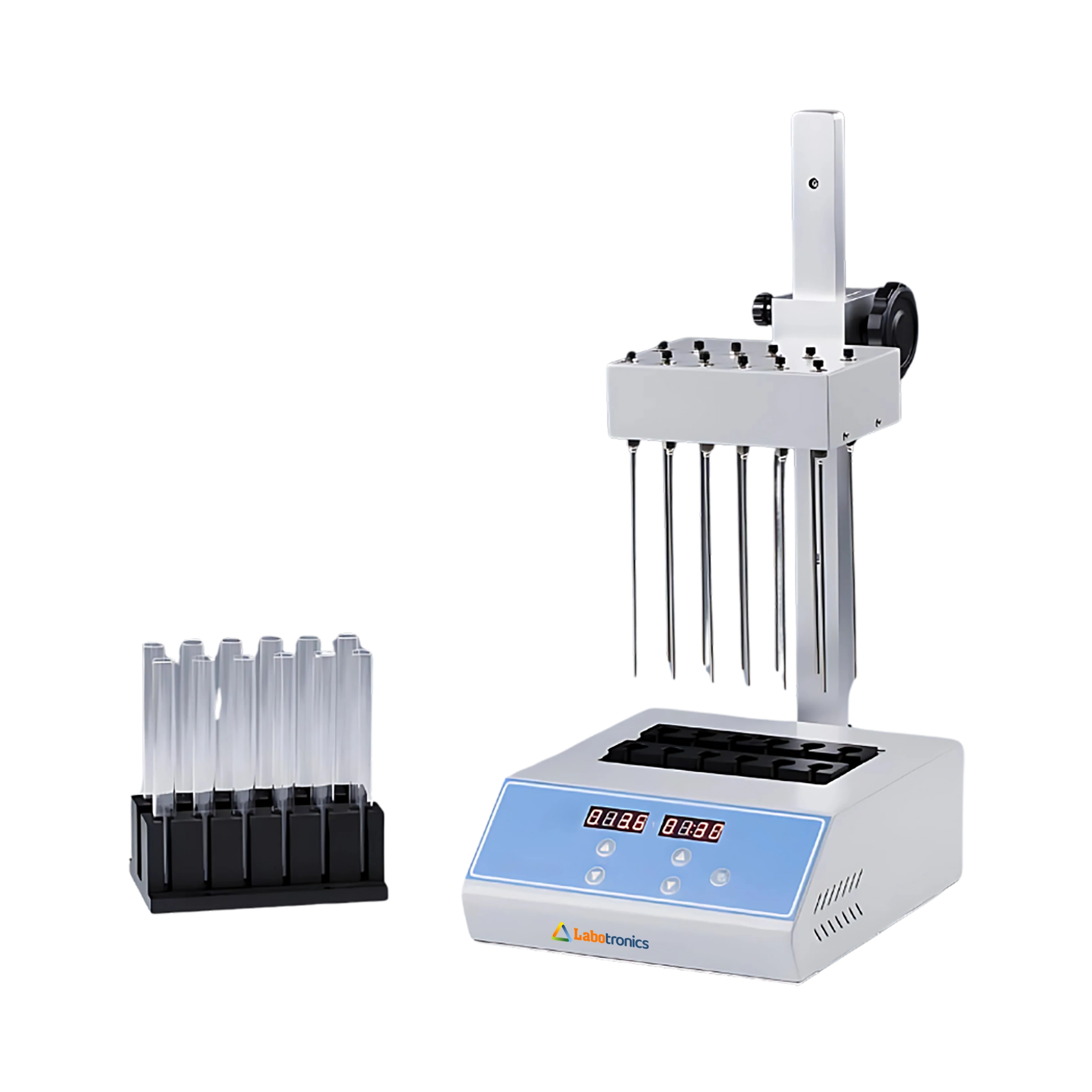

Sample Concentrator LB-16SC

    Number of Blocks 1
    Nitrogen Gas Flow Rate 15L/min
    Nitrogen Gas Pressure 0.1Mpa
    Needle Length 150 mm

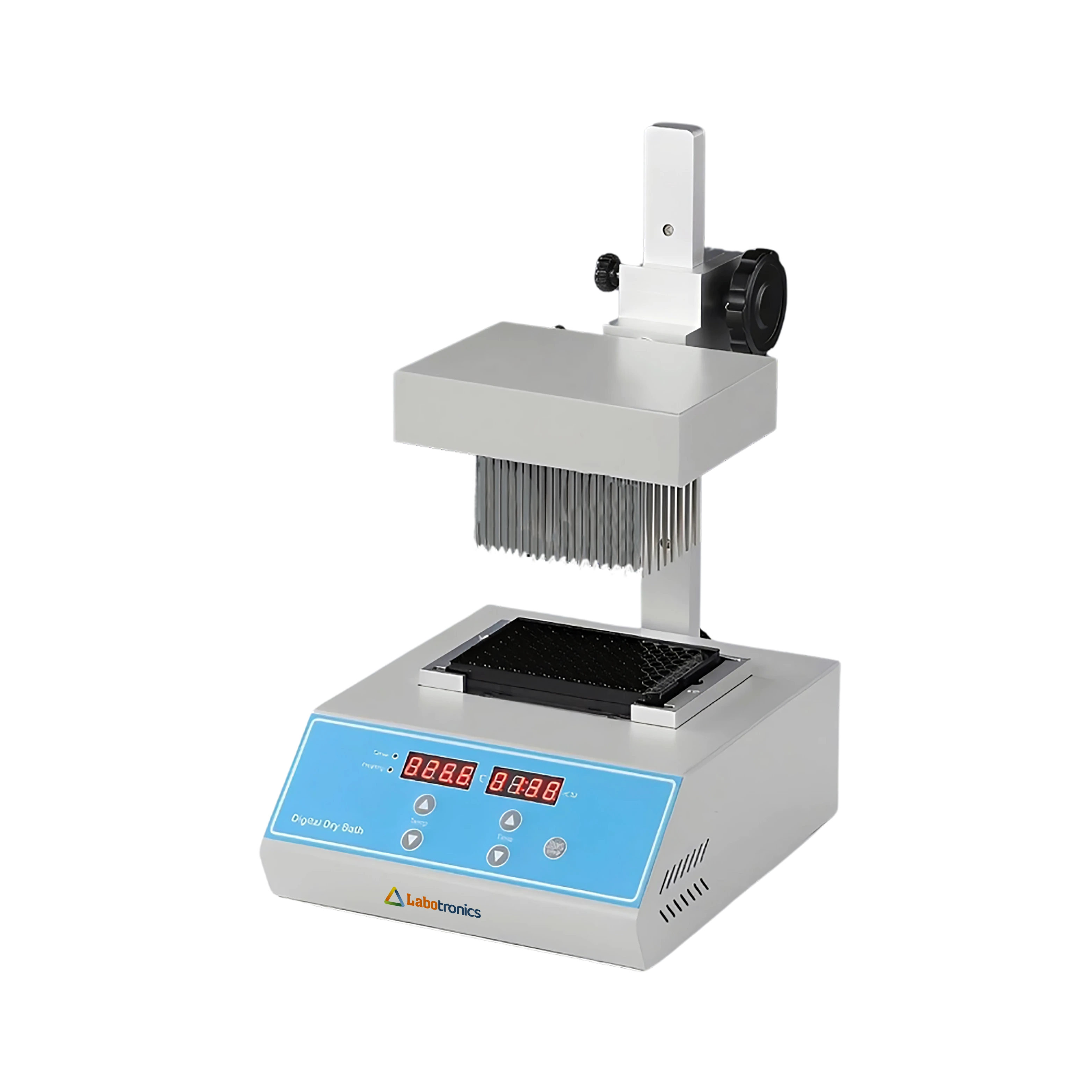

Sample Concentrator LB-17SC

    Number of Blocks 1
    Nitrogen Gas Flow Rate 15L/min
    Nitrogen Gas Pressure 0.05 Mpa
    Temperature Control Range RT+5℃ to 160℃
Sample concentrator LB-20SC
    Number of Blocks 2
    Nitrogen gas flow rate 15 L / min
    Nitrogen gas pressure 0.02 MPa (Gas needle ≤ 16 pcs)
    0.05 MPa (Gas needle > 16 pcs)
    Heat up time ≤ 15 mins (25 °C to 160 °C)
Sample concentrator LB-21SC
    Number of Blocks 2
    Nitrogen gas flow rate 15 L / min
    Nitrogen gas pressure 0.1 Mpa
    Heat up time ≤ 15 mins (25 °C to 160 °C)

Sample concentrator LB-22SC

    Number of Blocks 2
    Nitrogen gas flow rate 330 ml / min
    Nitrogen gas pressure 33 kPa to 69 kPa
    Heat up time ≤ 30 mins (40 °C to 150 °C)

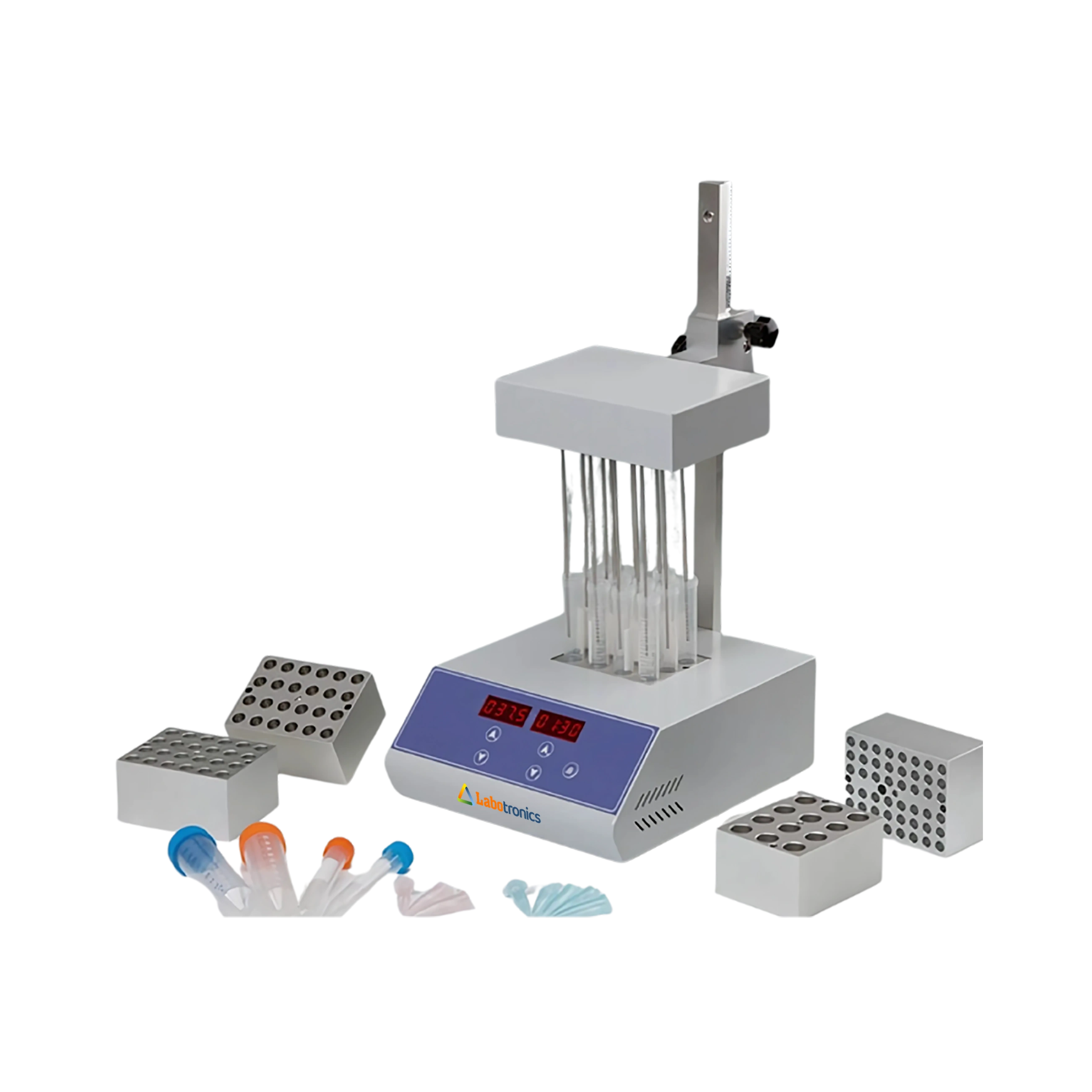

Sample Concentrator LB-23SC

    Number of Blocks 2
    Nitrogen Gas Flow Rate 23L/min
    Nitrogen Gas Pressure 0.02Mpa (Gas needle≤16pcs)
    0.05Mpa (Gas needle>16pcs)
    Temperature Range 0 °C to 160 °C

Sample Concentrator LB-24SC

    Number of Blocks 2
    Nitrogen Gas Flow Rate 15L/min
    Nitrogen Gas Pressure 0.1Mpa
    Temperature Range 0 °C to 160 °C
Sample concentrator LB-30SC
    Nitrogen gas flow rate 15 L / min
    Nitrogen gas pressure 200 kPa
    Tube size 10 to 29 mm (liquid volume 1 ml to 50 ml)
    Sample position 12 positions

×
