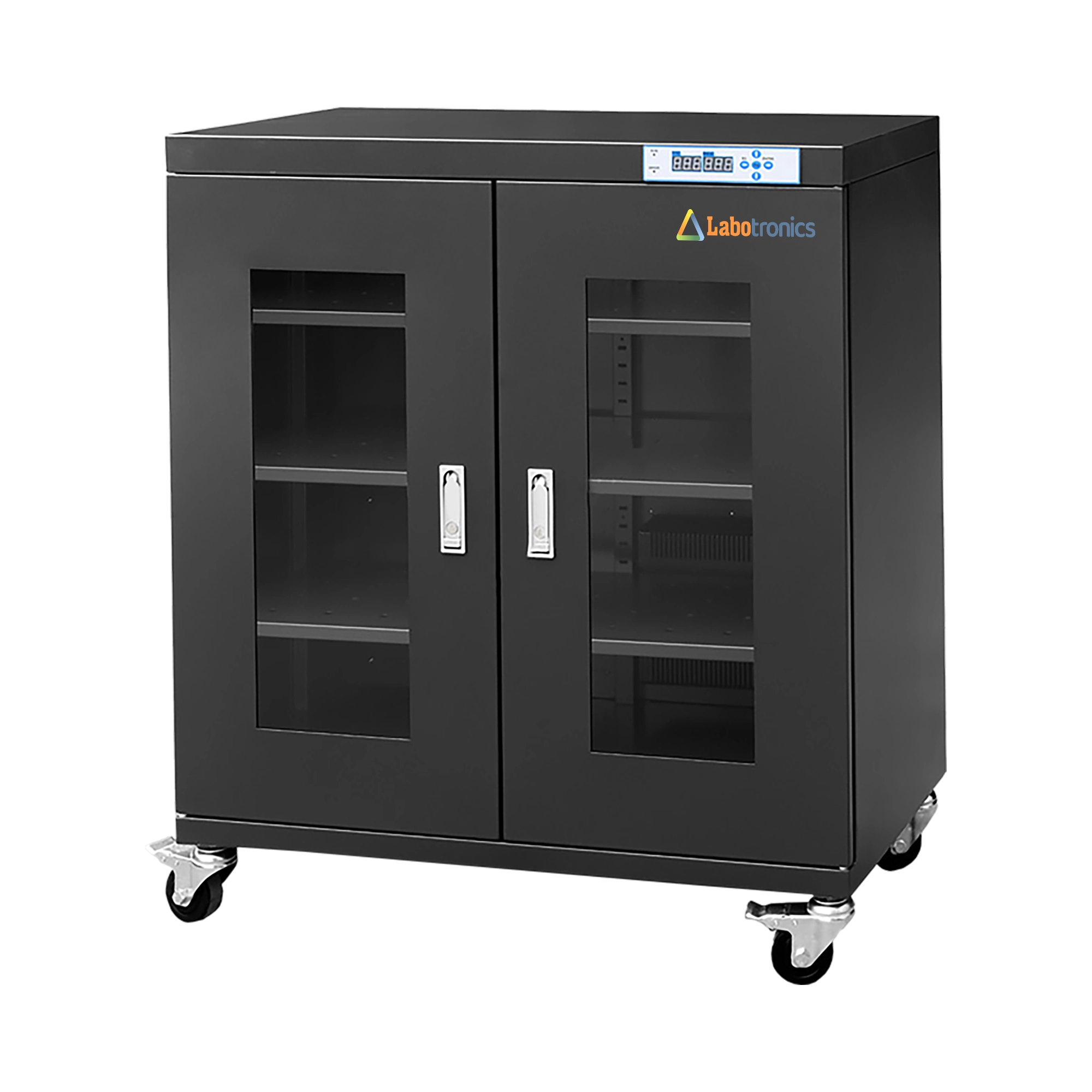

Drying Cabinet LB-43DC offers a 320L capacity and maintains humidity levels below 10% RH, ensuring precise storage of sensitive electronic components. It supports a load of up to 80 kg/shelf for reliable and stable storage. The flat press zinc alloy lock ensures airtight sealing and anti-theft protection. Our drying cabinet features temperature and humidity sensors, providing optimal storage conditions.
Get Quote Download CatalogSpecifications
| Capacity | 320L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 8W |
| Inner Dimension (W × D × H) | 898 × 422 × 848 mm |
| Outer Dimension (W × D × H) | 900 × 450 × 1010 mm |
| Net Weight | 54 kg |
| Gross Weight | 70 kg |
Features
ESD-safe coating
Tempered glass window
Sturdy wheels with brakes
Auto memory function
Low power consumption
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-43DC is used for precise storage of moisture-sensitive electronic components, preventing oxidation and defects. It is ideal for SMT production lines, PCB manufacturing, laboratories, and electronics assembly facilities.
