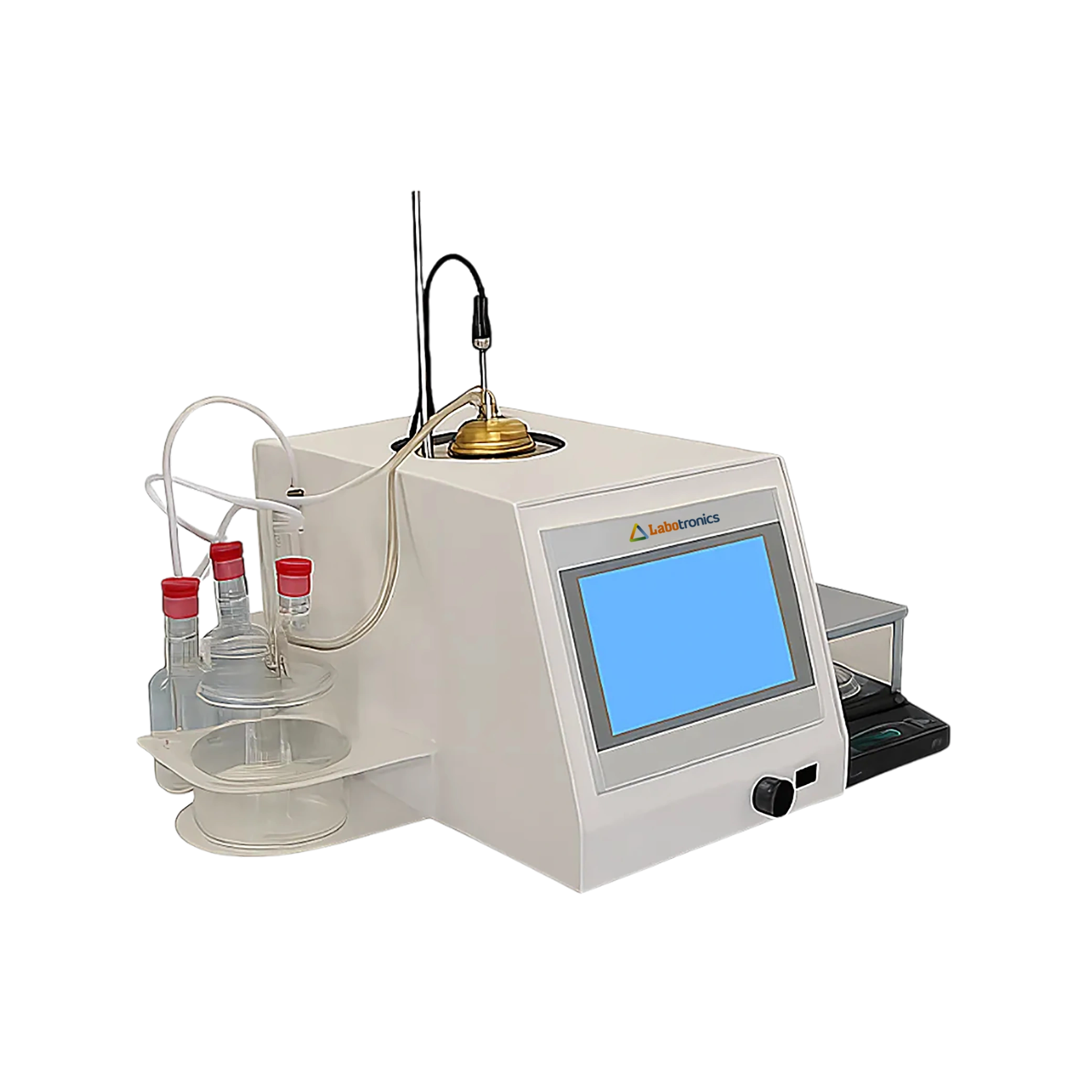

Evaporation loss test bath LB-11ELB is a high temperature semi-automatic unit. Built-in self-timing function, automatically open and shut the pump according to the test time. Conforms to ASTM D5800 standard test method for evaporation loss of lubricating oils.
Get Quote Download CatalogSpecifications
| Temperature control point | 250 °C ± 0.5 °C |
| Temperature control method | Touch screen LCD |
| Pressure regulator | Precise needle valve |
| Pressure display | Inclined manometer |
| Compliance | ASTM D5800 |
| Ambient temperature | 10 °C ~ 40 °C |
| Relative humidity | ≤ 85 % |
| Power | 1300 W |
| Voltage | AC 220 V ±10 %, 50 Hz |
| Dimensions | 320 x 500 x 300 mm |
| Weight | 20 kgs |
Features
Applications
Used in petroleum and oil industry to measure tendency of lubricating components in oil or grease to evaporate at high temperature.
| Samples tested | Oil and grease |
| Temperature range | RT ~ 200 °C |
| Temperature control accuracy | ± 0.1 °C |
| Flow rate | 0.4 g/min ~ 4 g/min |
