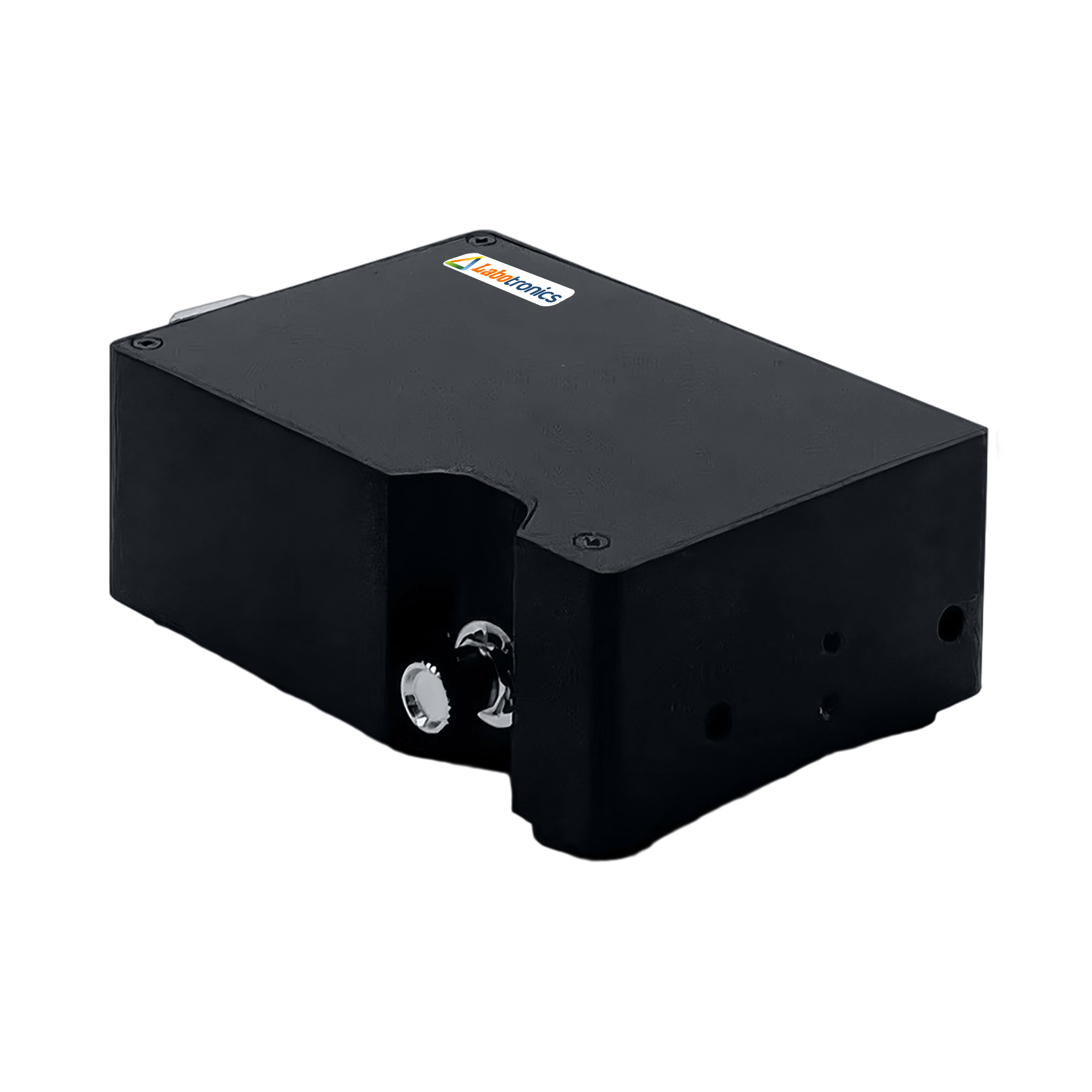

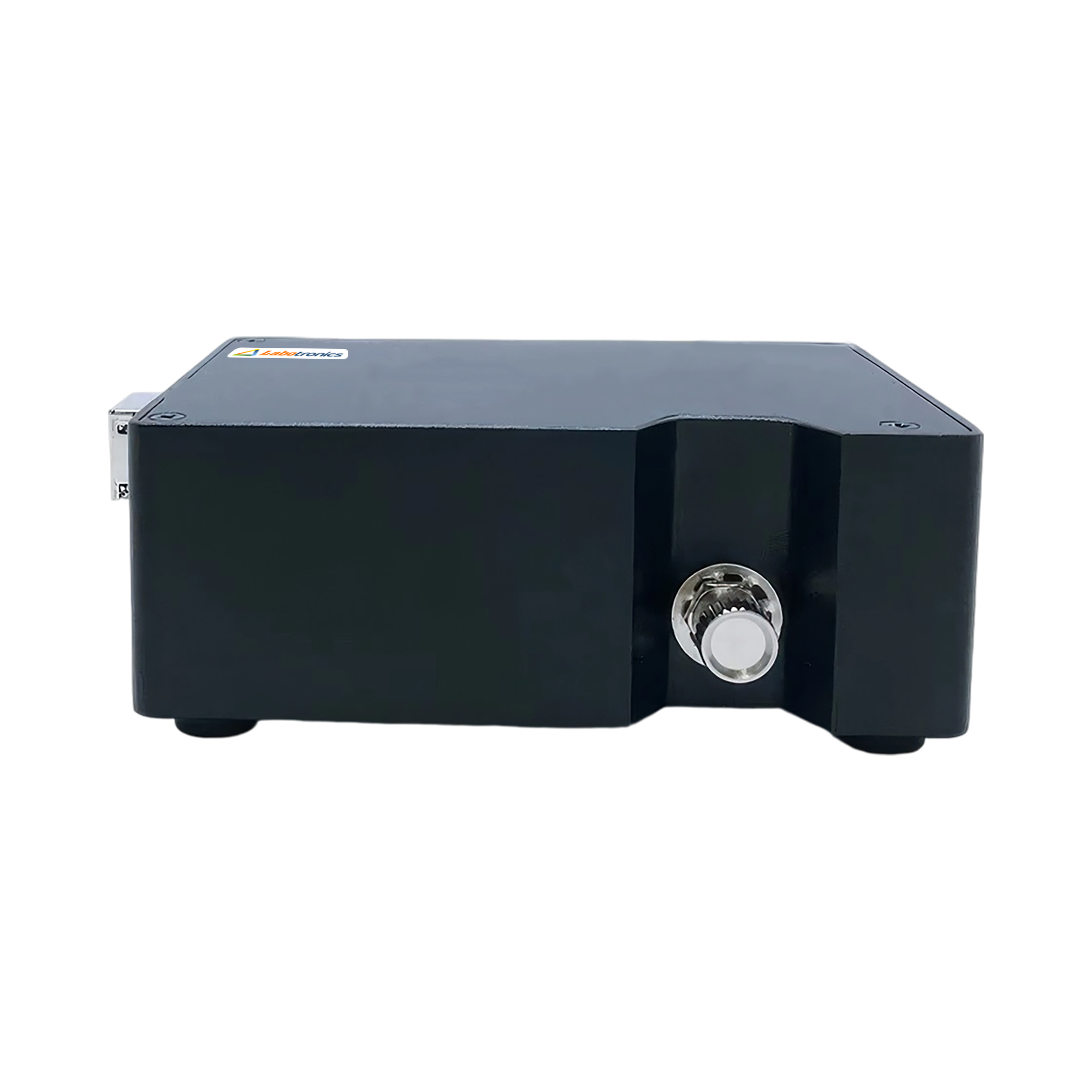

Fiber Optic Spectrometer LB-14FOS has a wavelength range of 200 to 1100 nm, ensuring reliable spectral analysis. It allows adjustable resolution based on grating density and slit size for flexible use. It has pixel detector, ensuring high-resolution data capture and accurate spectral analysis. Our spectrometer has a clear digital for real-time monitoring of spectral data during analysis.
Get Quote Download CatalogSpecifications
| Wavelength Range | 200 to 1100 nm |
| Optical Resolution | Depends on grating mark density and slit size |
| Detector | 2048 pixels |
| Pixel Size | 14 µm × 14 µm |
| Signal-to-Noise Ratio | ~ 450:1 |
| Integration Time | 17 ms to 10 s |
| Strobe Functions | Yes |
| Analog Channels | One 12-bit analog input, one 12-bit analog output |
| Inputs/Outputs | 5 inputs and 5 outputs |
| Power Supply | 450 mA at 5 VDC |
| Connector | 30-pin connector |
| Dimension | 149 × 109 × 50 mm |
| Net Weight | 1000 g |
Features
High signal accuracy
Adaptive resolution
Low power consumption
User-friendly interface
Efficient light capture
Standard Accessories
Software
Optional Accessories
1.0/1.5/2.0 m 400 µm fiber
400 µm fiber holder
SMA905 or FC/PC 400 µm fiber
Applications
Fiber Optic Spectrometer LB-14FOS is ideal for precise spectral analysis across UV, visible, and NIR ranges. It is used in research labs, chemical testing centres, industrial plants, and environmental monitoring stations.
Frequently asked questions For
1. What distinguishes the Labotronics Fiber Optic Spectrometer LB-14FOS in spectral resolution adjustment?
Labotronics Fiber Optic Spectrometer LB-14FOS offers adaptive resolution, allowing users to adjust spectral clarity based on grating density and slit size, making it versatile for various analytical needs.
2. Is the Labotronics LB-14FOS suitable for analyzing a wide light spectrum?
Yes, Labotronics LB-14FOS supports a broad wavelength range from ultraviolet to near-infrared, enabling detailed spectral analysis across diverse applications.
3. Can Labotronics LB-14FOS handle complex integration with external devices?
Yes. Labotronics LB-14FOS features input/output ports and analog channels, allowing seamless integration with external sensors and control systems for advanced data acquisition.
4. What is the primary use of a Labotronics Fiber Optic Spectrometer?
Labotronics Fiber Optic Spectrometers are used for precise spectral analysis of light, enabling accurate identification and quantification of materials in scientific and industrial applications.
5. How does a Labotronics Fiber Optic Spectrometer capture and analyze spectral data?
Labotronics Fiber Optic Spectrometers uses fiber optic probes to collect light from the sample and directs it through diffraction gratings, allowing the system to separate and measure specific wavelengths for detailed analysis.
6. Can Labotronics Fiber Optic Spectrometers be used for real-time monitoring?
Yes, our fiber optic spectrometers feature digital displays that allow real-time monitoring of spectral data during experiments, enhancing data accuracy and user control.
7. Are Labotronics Fiber Optic Spectrometers suitable for field applications?
Yes, Labotronics Fiber Optic Spectrometers feature a compact design and flexible fiber optic connectivity, making them ideal for both laboratory and field-based use in environmental, chemical, and biomedical studies.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Wavelength Range | 200 to 1100 nm |
| Optical Resolution | < 0.75 nm |
| Sensitivity | 130 photons/count at 400 nm 60 photons/count at 600 nm |
| Corrected Linearity | > 99.8% |
| Wavelength Range | 200 to 1100 nm |
| Optical Resolution | < 0.75 nm |
| Sensitivity | 130 photons/count at 400 nm 60 photons/count at 600 nm |
| Corrected Linearity | > 99.8% |
| Wavelength Range | 350 to 1100 nm |
| Optical Resolution | < 0.75 nm |
| Sensitivity | 130 photons / count at 400 nm 60 photons/count at 600 nm |
| Corrected Linearity | > 99.8% |
| Wavelength Range | 200 to 1100 nm (optional, max. 650 nm span) |
| Optical Resolution | < 1.0 nm |
| Detector | 3648 pixels |
| Pixel Size | 8 µm × 200 µm |
| Wavelength Range | 350 to 1100 nm |
| Optical Resolution | < 0.75 nm |
| Sensitivity | 130 photons/count at 400 nm 60 photons/count at 600 nm |
| Corrected Linearity | > 99.8% |
| Wavelength Range | 350 to 1100 nm |
| Optical Resolution | Depends on grating mark density and slit size |
| Detector | 2048 pixels |
| Pixel Size | 14 µm × 14 µm |
