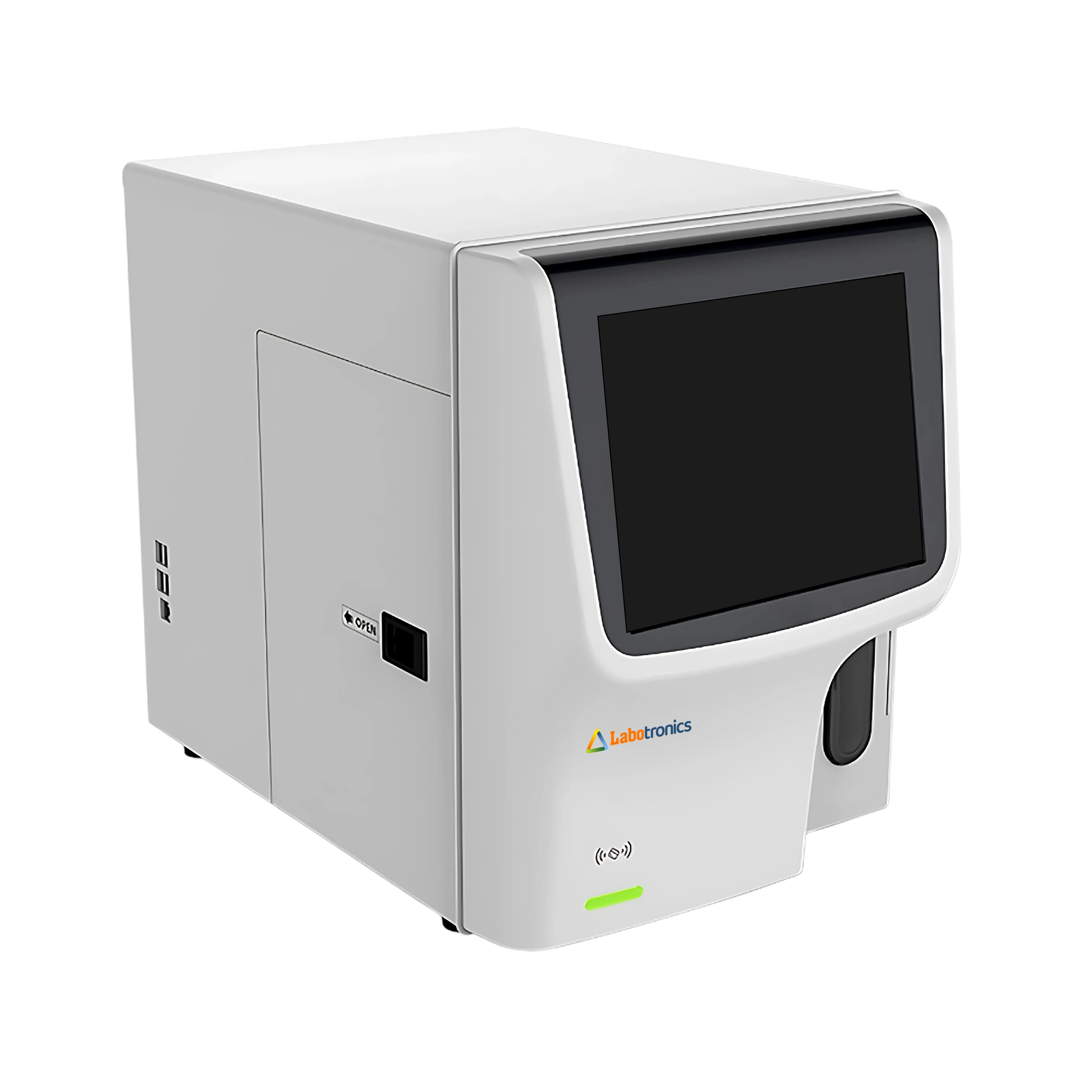

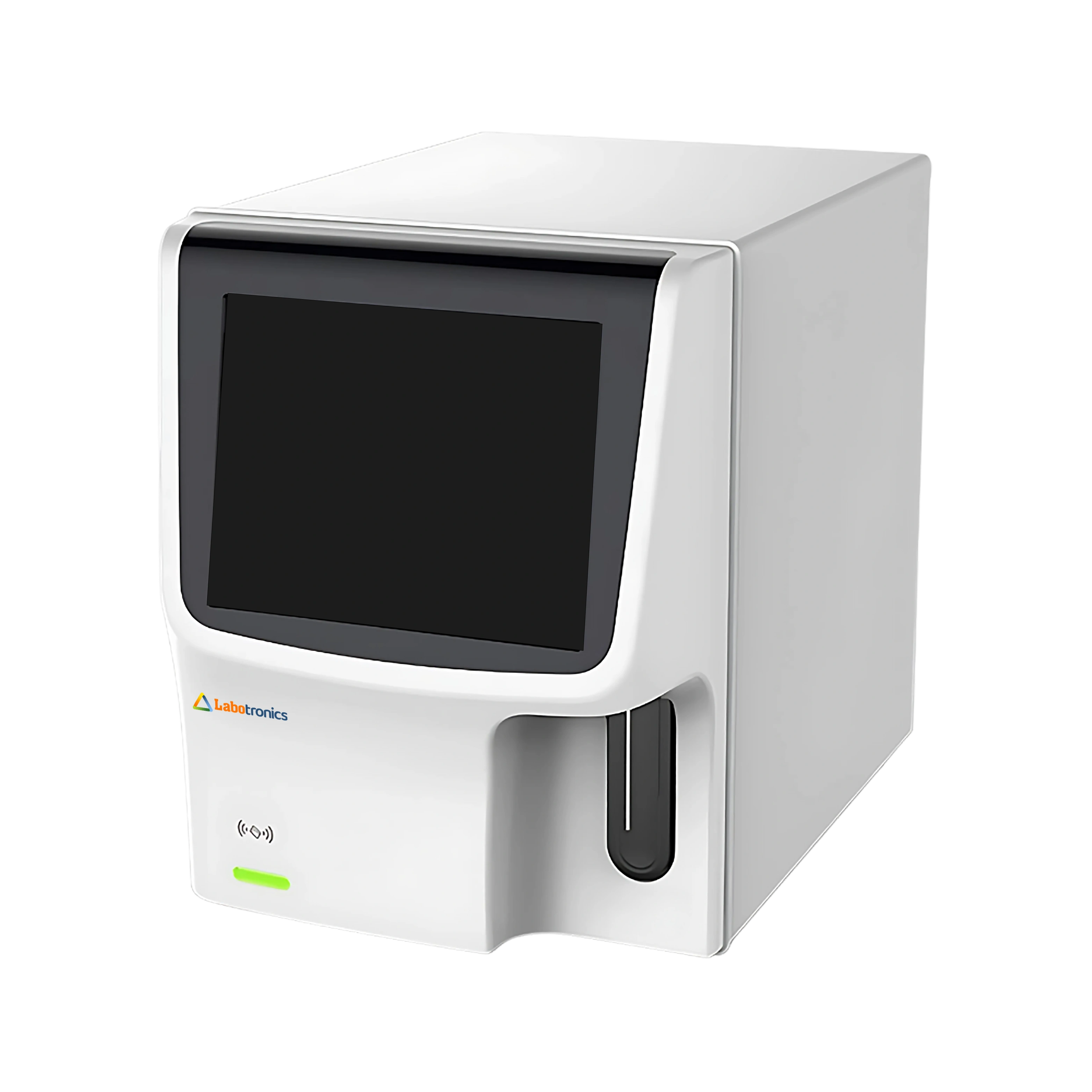

Hematology Analyzer LB-22HEA is an automated unit capable of processing over 55 samples per hour, delivering fast and accurate blood analysis. It operates reliably within a temperature range of 10 to 35 °C for consistent performance in clinical laboratories. It features automatic calibration and cleaning to reduce manual intervention and support efficient operation. Our analyzer is equipped with a 10.4-inch touchscreen for intuitive operation and real-time data analysis.
Get Quote Download CatalogSpecifications
| Processing Speed | ≥ 55 tests/hour |
| Sample Volumes | Whole Blood Mode: 28 μL, Pre-diluted: 20 μL |
| Measuring Principle | Tri-angle laser scattering, Flow cytometry for WBC 5-part differentiation, Impedance for RBC & PLT count, Cyanide-free method for HGB measurement. |
| Precision Range | WBC: CV ≤ 2.0% (3.5 to 15.0) × 10⁹/L RBC: CV ≤ 1.5% (3.0 to 6.0) × 10¹²/L HGB: CV ≤ 1.5% (100 to 180 g/L) MCV: CV ≤ 1.0% (70 to 120 fL) PLT: CV ≤ 4.0% (150 to 500) × 10⁹/L |
| Linearity Range | WBC: 0 to 1000 × 10⁹/L RBC: 0 to 8.00 × 10¹²/L HGB: 0 to 300 g/L PLT: 0 to 9999 × 10⁹/L |
| Temperature Range | 10 to 35 °C |
| Calibration System | Automatic, Manual |
| Parameters | 25 reportable parameters: WBC, Lym#, Lym%, Mon#, Mon%, Neu#, Neu%, Eos#, Eos%, Baso#, Baso%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC |
| Histogram | 2 Histograms: RBC, PLT |
| Scattergrams | 2 Scattergrams: Size, Diff |
| Display | 10.4-inch color touchscreen |
| Storage Capacity | Up to 50,000 sample results |
| Interface | 4 USB Ports, 1 LAN Port (supports HL7 Protocol, LIS compatible) |
| Power Supply | AC 100 to 240 V ±10%, 50/60 Hz |
| Dimension (W × D × H) | 430 × 330 × 510 mm |
| Packaging Dimension | 730 × 490 × 490 mm |
| Net Weight | 25 kg |
| Gross Weight | 34 kg |
Features
Standard Accessories
Hematology Analyzer × 1 Unit
User Manual × 1 Unit
Power Cable × 1 Unit
Standard Reagents (500ml Lyse1+ 500ml Lyse2 + 20L Diluent + 50ml Prober Cleaner)
Optional Accessories
500ml Lyse1 × 1 Bottle
500ml Lyse2 × 1 Bottle
20L Diluent × 1 Bottle
50ml Prober Cleaner × 1 Bottle
Applications
Hematology Analyzer LB-22HEA is used for the rapid detection of blood disorders and monitoring patient health through detailed blood cell analysis. It is widely utilized in medical laboratories, blood banks, and research institutions.
| Processing Speed | 60 tests/hour |
| Sample Volumes | CBC + Diff mode: 20 µl, pre-diluted: 20 µl |
| Operating Temperature | 10 to 30 °C |
| Measuring Principle | Tri-angle laser scattering, flow cytometry for WBC differentiation, Impedance for RBC and PLT count, Cyanide-free method for HGB measurement |
| Processing Speed | CD: 80 tests/h CDR: 45 tests/h CD + ESR: 40 tests/h |
| Sample Volumes | CCD (Whole blood): 23 µl CD + ESR (Whole blood): 160 µl Predilute: 20 µl |
| Measuring Principles | WBC (IMG/Neu/Mon/Lym/Eos/Bas), NRBC/RET, PLT-H/PLT-O/IPF: SF Cube Cell Analysis Technology (Scatter, Fluorescence, 3D analysis) |
| Operating Temperature | 10℃ to 35℃ |
| Test Assay | 21 parameters + 3 histograms |
| Sample Volume | ≤ 20µL |
| Sampling Mode | Whole blood & pre-diluted blood |
| Throughput | 60 tests/hr |
