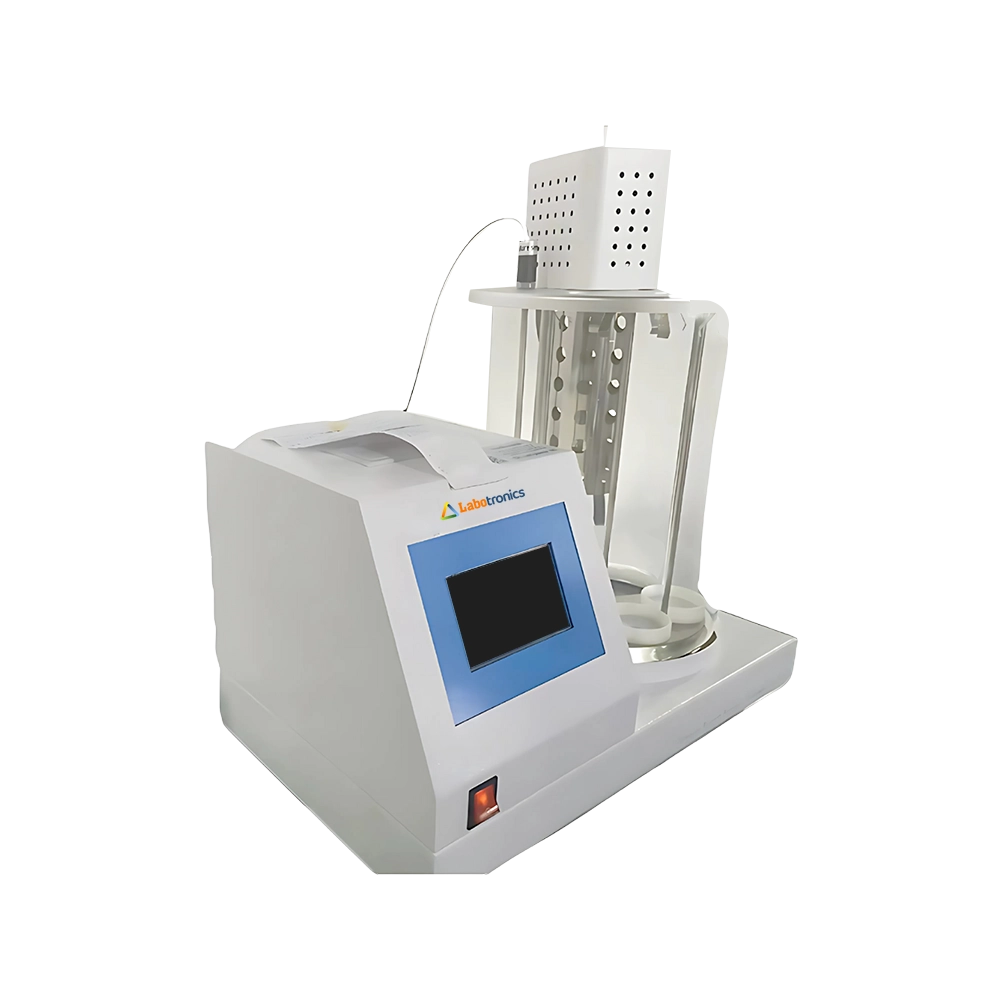

Kinematic Viscosity Bath LB-10KVB offers a wide testing range of 0.5 mm²/s to 20000 mm²/s, ensuring accurate viscosity measurements. It provides a controlled temperature range from RT to 100 °C, accommodating both low and high-viscosity oils. It incorporates a ring-shaped daylight lamp for enhanced visual clarity during testing. Our viscosity bath features a large LCD color screen, offering a visualized and clear real-time display.
Get Quote Download Catalog Download ManualSpecifications
| Testing Range | 0.5 mm²/s to 20000 mm²/s 0.3 mPa.s to 40000 mPa.s |
| Temperature Control Range | RT to 100 °C |
| Temperature Control Accuracy | ± 0.1 °C |
| Sample Installing Capacity | 4 pieces |
| Homoeothermic Bathtub | 300 × 300 mm double layer |
| Time Range | 0.1 s to 999.9 s |
| Time Accuracy | ± 0.1 s |
| Stirring Speed | 1520 rpm |
| Ambient Temperature Range | 0 °C to 40 °C |
| Relative Humidity | < 80 % |
| Power Consumption | 800 W |
| Power Supply | AC 220 V ± 10 %; 50 Hz |
| Dimensions | 560 × 370 × 520 mm |
| Weight | 20 kg |
Features
Applications
Kinematic Viscosity Bath LB-10KVB is used in industries such as petroleum, pharmaceuticals, and chemical sectors for accurate viscosity testing. It is ideal for laboratories that require precise temperature control and analysis of various oil viscosities.
| Cold Bath Volume | 8L |
| Temperature Range | 20 to - 60° C |
| Temperature Accuracy | ± 0.1° C |
| Slot Holes | Single |
| Temperature Range | RT to 120℃ |
| Temperature Range Precision | ≤±0.1℃ |
| Temperature Control Precision | RT to 40℃≤±0.2℃ |
| Liquid Bath Holes | 4 |
| Stirring mode | Motor stirring |
| Accuracy | ± 0.1 °C |
| Suction regulation | Potentiometer |
| Compliance | ASTM D445 |
| Testing Range | 0.5 to 20000 mm²/s (with different viscosity tubes) |
| Temperature Control Range | 20℃ to 100℃ |
| Temperature Accuracy | ±0.01℃ |
| Working Temperature Range | 0℃ to 40℃ |
