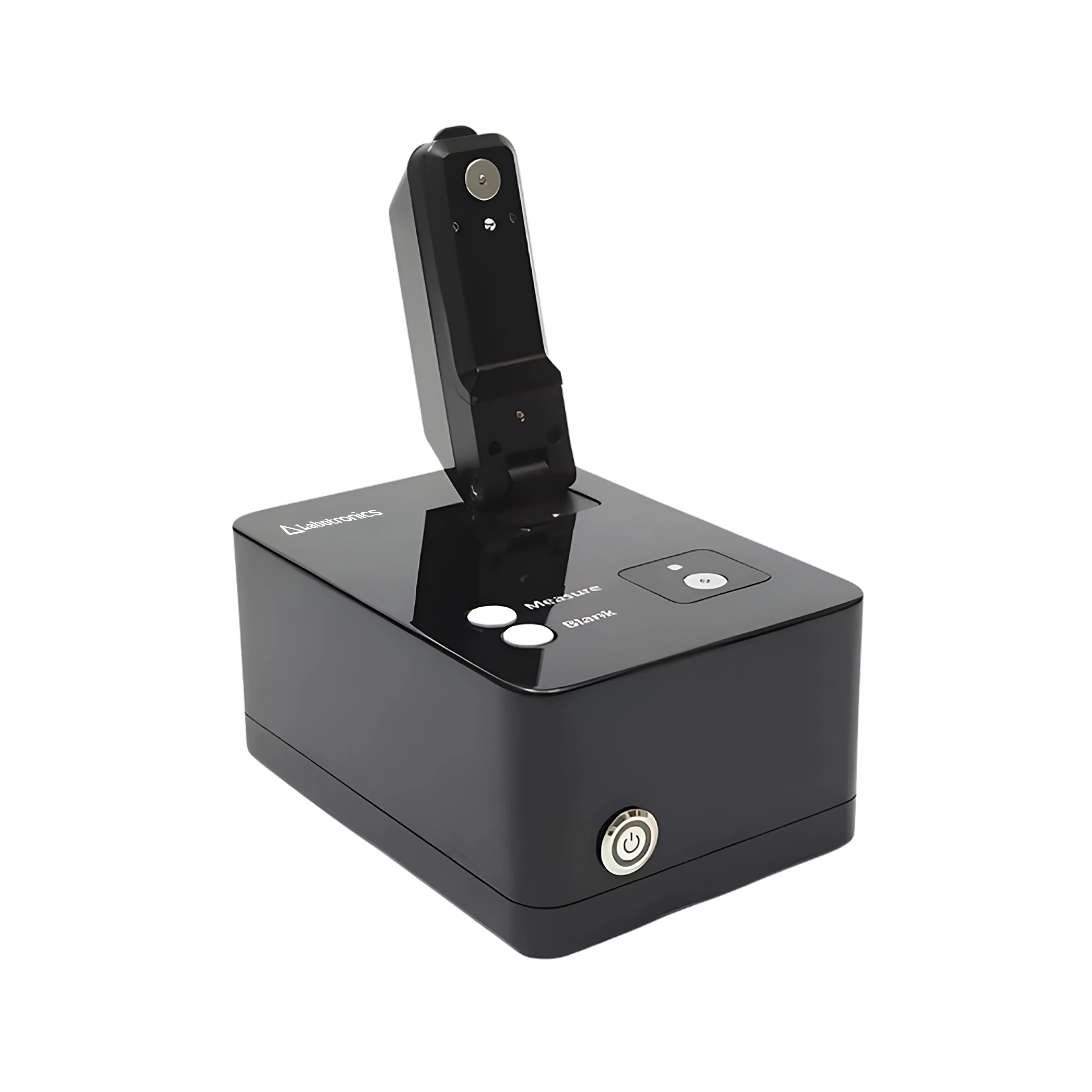

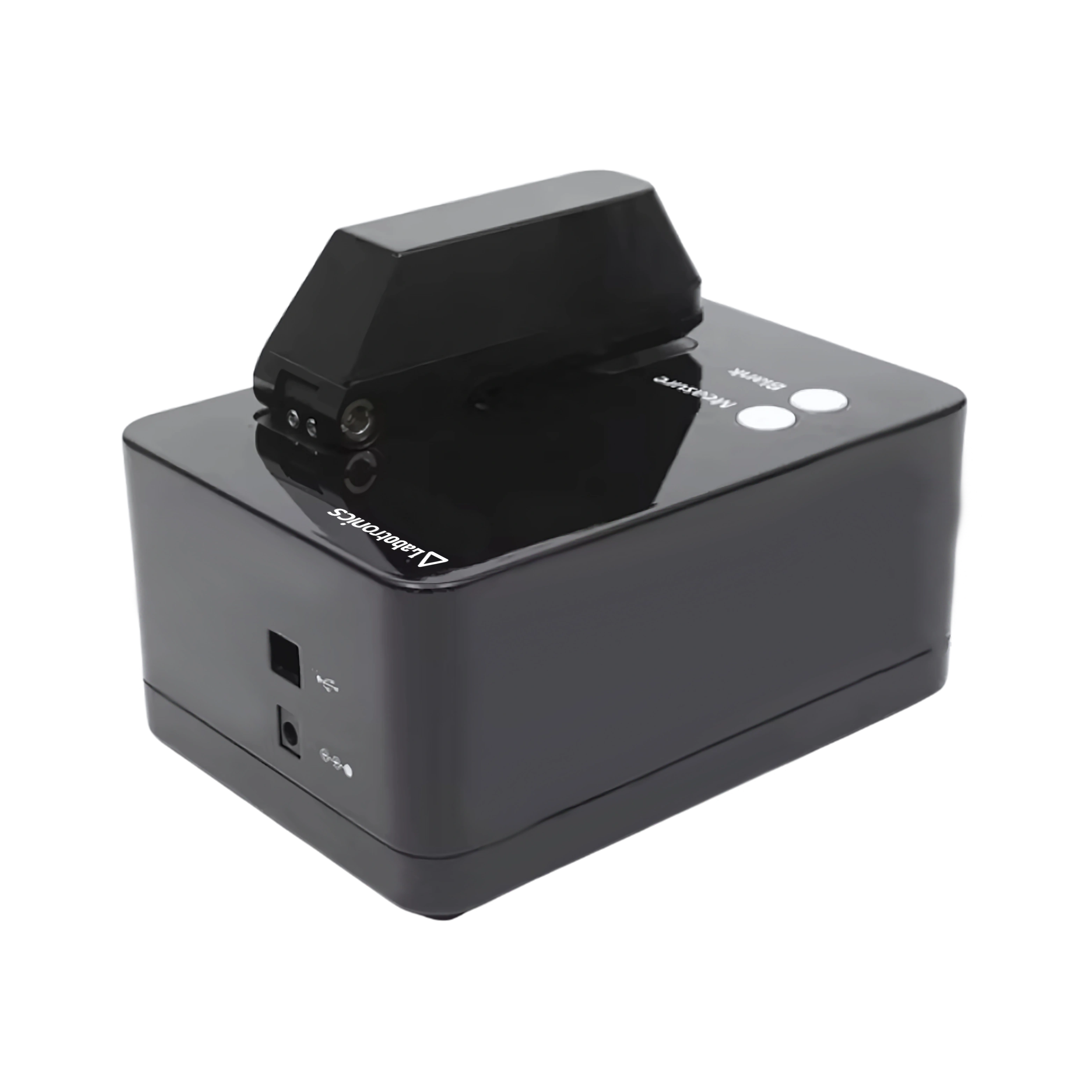

Micro Volume Spectrophotometer LB-20MVS delivers precise and reliable measurements with a wavelength range of 190 to 850 nm. It features microscale sample testing with a minimum volume of 0.5 µl, enabling accurate analysis of small samples. It offers direct testing for container analysis and daily measurements, delivering fast and consistent results. Our spectrophotometer is equipped with a sample pedestal made of stainless steel and quartz for enhanced durability.
Get Quote Download CatalogSpecifications
| Wavelength Range | 190 to 850 nm |
| Minimum Sample Size | 0.5 µL |
| Optical Distance | 1 mm / 0.2 mm |
| Wavelength Accuracy | 1 nm |
| Wavelength Resolution | ≤ 0.3 nm |
| Absorbance Range | 0.02 to 300 A |
| Absorbance Accuracy | 2% |
| Absorbance Resolution | 0.002 Abs |
| Absorbance Test Range | 0.1 to 5 Abs ±0.1 Abs 5 to 80 Abs ±2% |
| Detection Range | Lower limit: 2 ng/µL (dsDNA) Upper limit: 15000 ng/µL (dsDNA) |
| Measurement Time | < 5 seconds |
| Detector | 3648 pixel linear CCD array |
| Light Source | Xenon flash lamp |
| Power Consumption | 24 W |
| Power Supply | AC 100 to 240 V; 50 to 60 Hz |
| Dimension (W × D × H) | 200 × 130 × 136 mm |
| Weight | ≤ 2.0 kg |
Features
No dilution needed
Wide measurement range
High sensitivity detection
Auto wavelength scan
PC-controlled flexibility
Applications
Micro Volume Spectrophotometer LB-20MVS is used to accurately measure the concentration and purity of DNA, RNA, and proteins in small sample volumes. It is widely used in molecular biology, biochemistry, clinical laboratories, and pharmaceutical research.
Frequently asked questions For
1. What makes the Micro Volume Spectrophotometer LB-20MVS suitable for small sample testing?
Our Micro Volume Spectrophotometer LB-20MVS is designed to handle small sample volumes, making it ideal for precious or limited materials. Its sensitive detection ensures accurate and reliable results even with minimal sample amounts.
2. How reliable are the measurements of the Micro Volume Spectrophotometer LB-20MVS?
Labotronics LB-20MVS delivers consistent and reproducible results across multiple tests. Its advanced detection system maintains accuracy regardless of sample type or concentration.
3. Can the Micro Volume Spectrophotometer LB-20MVS be connected to a computer?
Yes, the LB-20MVS supports PC control for advanced data analysis and flexible testing. This connectivity allows laboratories to streamline workflows and manage results efficiently.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Wavelength Range | 190 to 850 nm |
| Minimum Sample Size | 0.5 µL |
| Optical Distance | 1 mm / 0.2 mm / 0.05 mm |
| Cuvette Optical Distance | 10 mm / 5 mm / 2 mm / 1 mm |
| Wavelength range | 190 nm ~ 1100 nm |
| Spectral bandwidth | 4 nm |
| Minimum sample capacity | 0.2 µL |
| Optical system | Single beam (1200 lines/mm grating) |
