Microwave Digestion System LB-14MDS

Name: Microwave Digestion System LB-14MDS
Brand: Labotronics
SKU: LB-14MDS
Rating: 4.7 (556 reviews)

Microwave Digestion System LB-14MDS offers reaction tank capacities of 55, 100, and 110 mL, providing versatile options for sample digestion. It operates within a working temperature range of 0 to 40°C, ensuring reliable performance. It features a multi-layer PFA-coated inner cavity to prevent long-term corrosion from strong acids. Our microwave digester includes a 7-inch touch LCD screen for easy and user-friendly operation.

Get Quote Download Catalog

Specifications

Reaction Tank Capacity	55, 100, 110 mL
Batch Volume	Maximum 40 Positions
Maximum Temperature	≥ 300°C
Working Temperature range	0 to 40°C
Humidity Range	15 to 80% RH
Microwave Cavity	65L, 316L stainless steel, multi-layer corrosion-resistant PFA Teflon coated
Microwave Source	2450 MHz, dual magnetron
Pressure Control	G-pressure real-time monitoring, overpressure adjustment, and automatic alarm
Pressure Measurement	Piezoelectric pressure sensor External digestion tank pressure: ≥ 20 MPa Inner digestion tank pressure: ≥ 4 MPa Volume: ≥ 100 mL
Pressure Display Accuracy	± 0.1 MPa
Temperature Measurement	Optical fiber sensor (-50 to 350°C)
Temperature Control Accuracy	± 0.1°C
Full-Tank Temperature Range	0 to 350°C
Control Accuracy	± 0.1°C
Communication Interface	USB, RS-232
Furnace Exhaust System	High-power corrosion-resistant axial fan; cools from 200°C to 60°C in 15 minutes
Inner Tank Material	Imported TFM
External Tank Material	G-Fiber (explosion-proof)

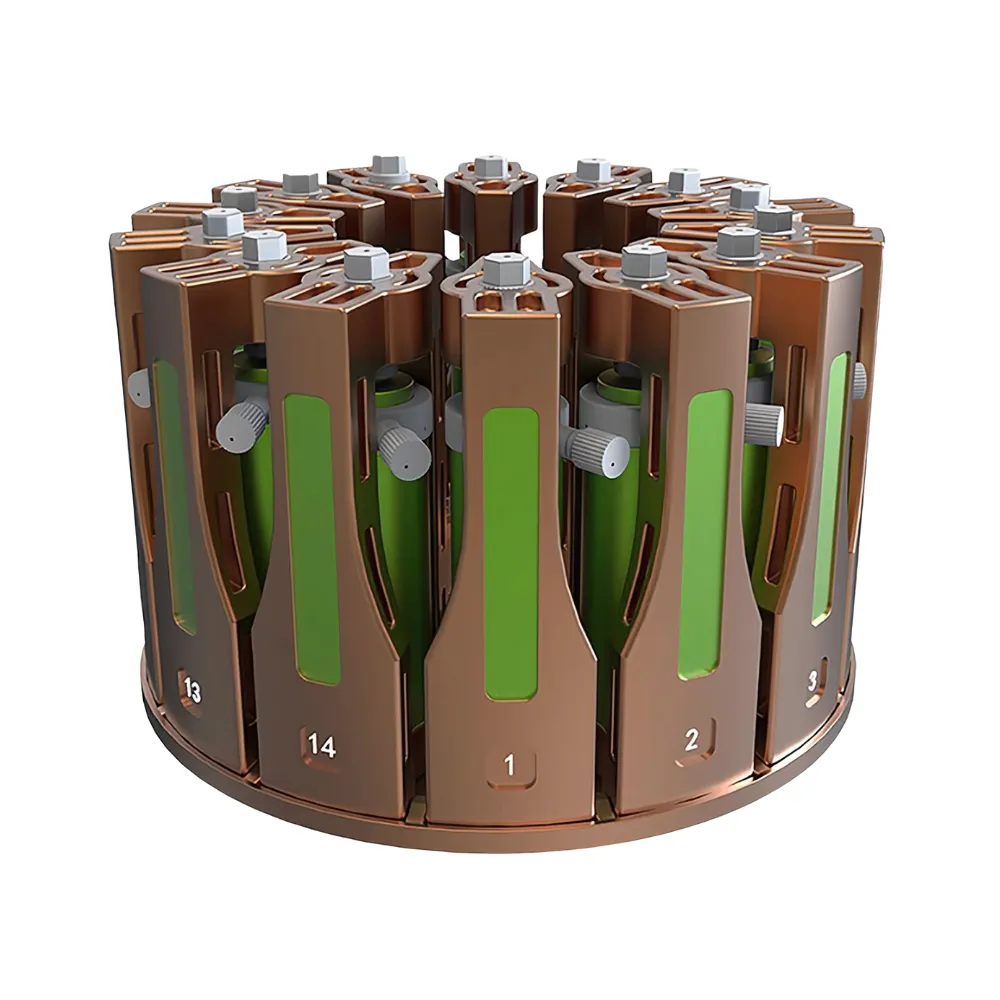

Digesting Rotor Frame	High-strength integrated turntable frame
Display Screen	7-inch large touch LCD
Software System	ARM chip with ZG operating system
Power Consumption	3200W Microwave: 2000W
Power Supply	220 to 240 VAC, 50/60Hz, 15A
Dimension (W × D × H)	580 × 680 × 720 mm
Net Weight	65 kg

Features

Sealed safety design
Electromagnetic leak protection
High-throughput capacity
Corrosion-resistant chamber
Real-time video monitoring

Applications

Microwave Digestion System LB-14MDS is used to break down samples with microwave energy and acids for accurate elemental analysis. It is widely applied in environmental, food, pharmaceutical, and mining industries.

Get Quote
