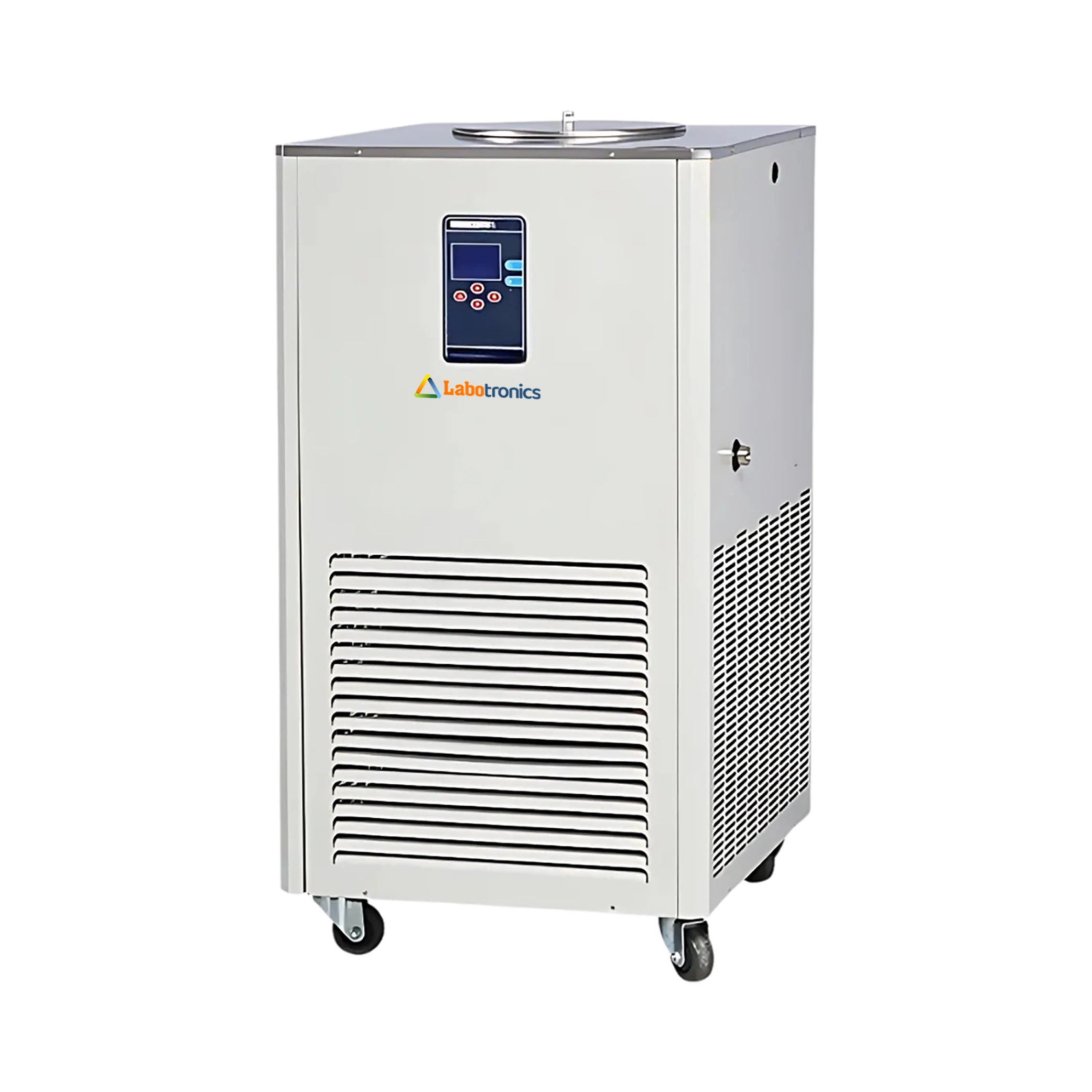

Recirculating Chiller LB-13RCC offers a 5L cooling tank and operates at a temperature range of -30°C to ambient temperature for reliable thermal control. It features a high-efficiency compressor, ensuring rapid temperature recovery. It delivers stable circulation with a shielded pump, supporting uniform cooling performance. Our recirculating chiller includes a clear digital display for precise temperature monitoring and control.
Get Quote Download CatalogSpecifications
| Tank Capacity | 5 L |
| Temperature Range | -30 to RT (±1℃) |
| Temperature Sensor | PT100 |
| Humidity | 60% |
| Tank Opening Diameter | 180 mm |
| Tank Dimension | 160 × 280 mm |
| Pump Flow Rate | 20 L/min |
| Pump Type | Shield pump |
| Rated Head | 8 m |
| Refrigerant type | R404A |
| Horsepower | ¾ HP |
| Condenser Type | Air cooling |
| Fan Type | External rotor axial flow fan |
| Evaporator Type | Internally threaded copper pipe |
| External Circulation Interface | G1/2" inner thread to 11mm hose barb fitting |
| Rated Cooling Capacity | 875 W to 225 W |
| Compressor Power | 0.4 kW |
| Compressor Current | 2.8 A |
| Pump Power Consumption | 100 W |
| Power Consumption | 470 W |
| Power Supply | 220 V, 50 Hz (1P) |
| Dimensions (L × W × H) | 520 × 410 × 800 mm |
| Net Weight | 42 kg |
| Gross Weight | 59 kg |
Features
PT100 temperature sensor
Air-cooled condenser
Integrated circulation interface
Overcurrent and leakage prevention
Closed circulation system
External circulation port
Applications
Recirculating Chiller LB-13RCC is suitable for precise cooling of sensitive equipment like analytical instruments, bioreactors, and rotary evaporators. It is commonly used in laboratories, chemical processing, and research facilities.
Frequently asked questions For
1. Is the Labotronics Recirculating Chiller LB-13RCC suitable for sensitive lab instruments?
Yes, we supply the Recirculating Chiller LB-13RCC for precise cooling of sensitive equipment like rotary evaporators, bioreactors, and analytical instruments.
2. Can the Recirculating Chiller LB-13RCC be connected to external equipment?
Absolutely. Labotronics Recirculating Chiller LB-13RCC includes an external circulation port and integrated circulation interface for seamless connection with lab equipment.
3. Can the Recirculating Chiller LB-13RCC used with tap water?
Recirculating Chiller LB-13RCC is compatible with standard tap water, eliminating the need for distilled water in most applications.
4. Is the Recirculating Chiller LB-13RCC suitable for continuous operation?
Yes, the Recirculating Chiller LB-13RCC is designed for continuous operation. It features a closed-loop system and a high-efficiency compressor, ensuring stable performance and long-term operational reliability.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
