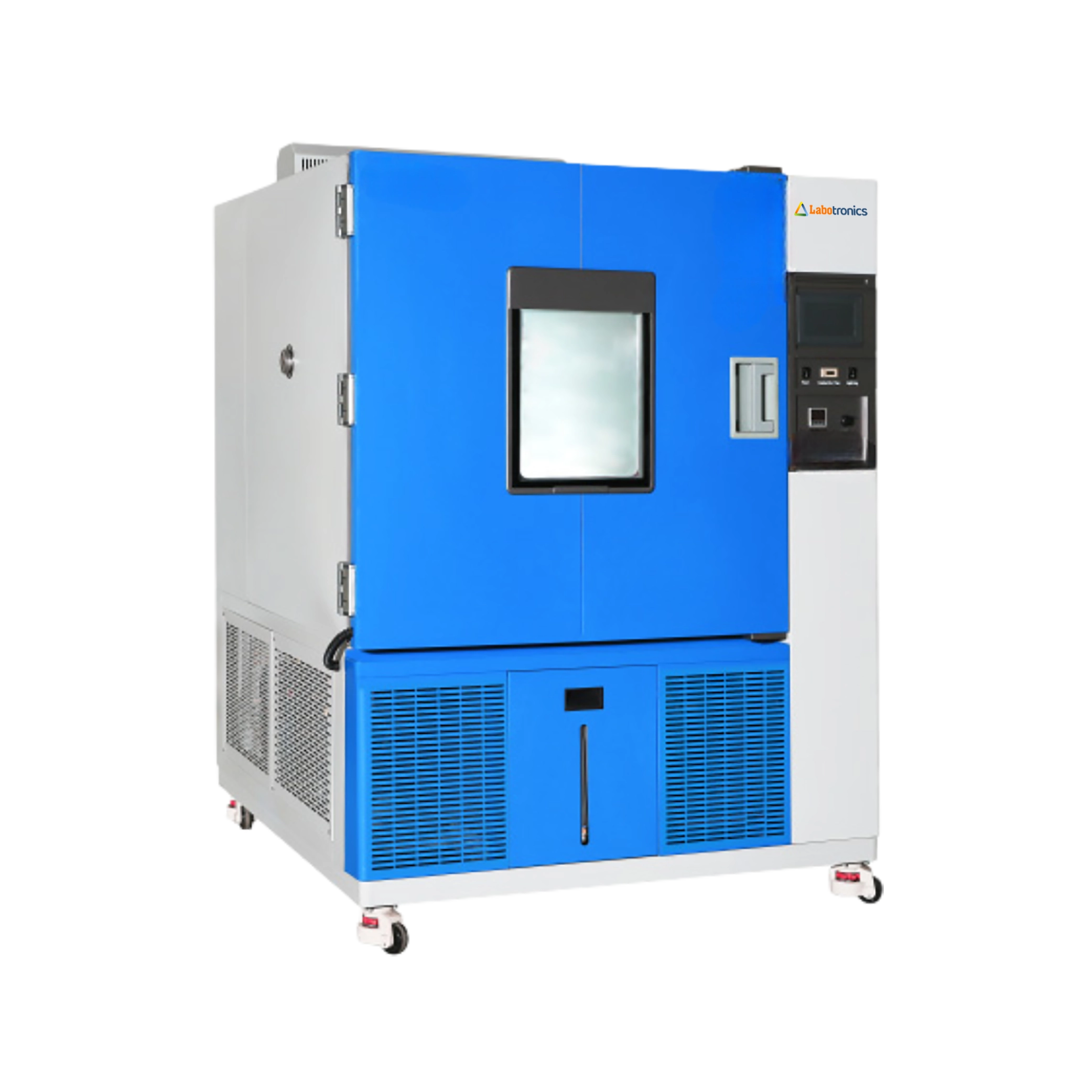

Temperature Test Chamber LB-12TTC

Temperature Test Chamber LB-12TTC

Temperature Test Chamber LB-12TTC offers a 50L capacity and a temperature range of -40 to +150°C for reliable product testing. It includes an independent heating system for precise temperature control. It utilizes high-quality refrigerant and dual cooling mode for efficient cooling. Our temperature test chamber features an advanced digital display for accurate environmental testing.

Get Quote Download Catalog

Specifications

Capacity 50L
Temperature Range -40 to +150°C
Temperature Fluctuation ≤ ±0.5°C
Temperature Uniformity ≤ 2.0°C
Heating Rate 2.0 to 3.0°C/min
Cooling Rate 0.7 to 1.0°C/min
Refrigerant R404A/R23
Refrigeration System Unit cooling mode / Dual cooling mode
Heating System NiCr heater, independent system
Circulation System Single cycle, long axis and stainless-steel multi-leaf type centrifuge fan
Display 7-inch touch screen
Interior Anti-corrosion SUS#304 mirror stainless steel
Exterior Reinforced Steel plate with electrostatic spraying
Insulation Superfine fiberglass wool / polyurethane foam
Power Supply 220V 50/60Hz, 380V 50/60Hz or customized
Inner Dimension (W × D × H) 350 × 320 × 450 mm
Outer Dimension (W × D × H) 950 × 950 × 1400 mm
Gross Weight 200 kg

Features

  • User-friendly interface
  • Overload protection
  • Energy efficient unit
  • Low noise operation
  • Programmable settings

Applications

Temperature Test Chamber LB-12TTC is used for testing the performance and durability of materials and products. It is ideal for research labs, industrial testing facilities, and quality control environments.
Temperature Test Chamber LB-12TTC Banner
Temperature Test Chamber LB-12TTC Banner

Get Quote

Frequently asked questions For

1. What can I test using the LB-12TTC?

The LB-12TTC is ideal for testing electronics, automotive parts, aerospace materials, industrial components, and medical devices under controlled temperature conditions.

2. Can I run multiple temperature cycles automatically?

Yes, the LB-12TTC supports programmable temperature profiles, allowing you to set multiple heating and cooling steps for automated testing.

3. How easy is it to operate the LB-12TTC?

The LB-12TTC chamber features a user-friendly interface and programmable settings, making it simple for both routine and advanced testing.

4. Do Labotronics Temperature Test Chambers LB-12TTC include safety features?

Yes, they come equipped with safety alarms, automatic shut-off, and protective insulation to ensure safe operation in laboratory and industrial environments.

5. What is a Temperature Test Chamber used for?

A Temperature Test Chamber is used to simulate specific temperature conditions to test the durability, stability, and performance of products or materials in industries like electronics, automotive, aerospace, and pharmaceuticals.

6. How is temperature stability maintained during testing?

The chamber is equipped with precise control systems and insulated walls to ensure consistent temperature levels throughout the testing cycle.

7. How easy is it to operate the chamber with gloves on?

The user interface is designed to be glove-friendly, allowing operators to adjust settings and monitor tests without removing protective equipment.

8. Can the Labotronics test chamber handle both high and low temperatures?

Yes, Our Temperature Test Chambers can simulate a wide range of conditions, from extreme cold to high heat, making them ideal for various testing requirements.
