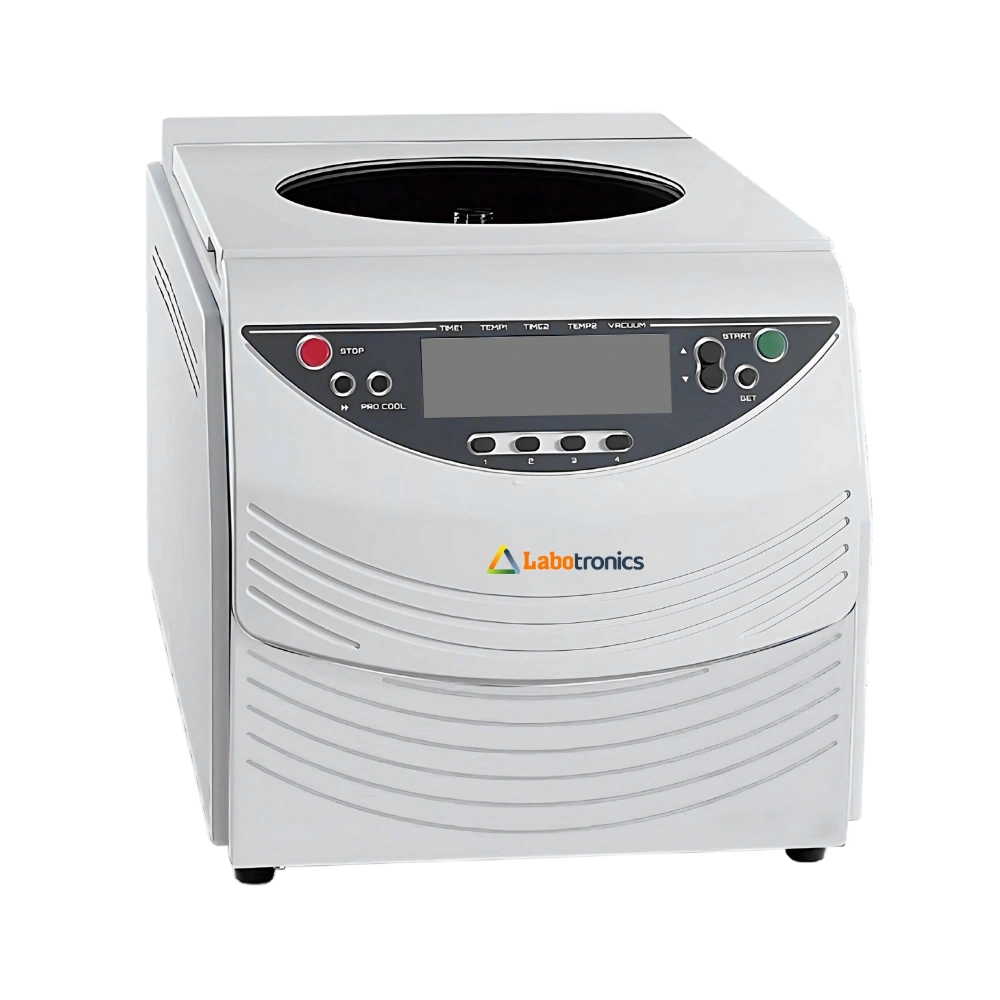

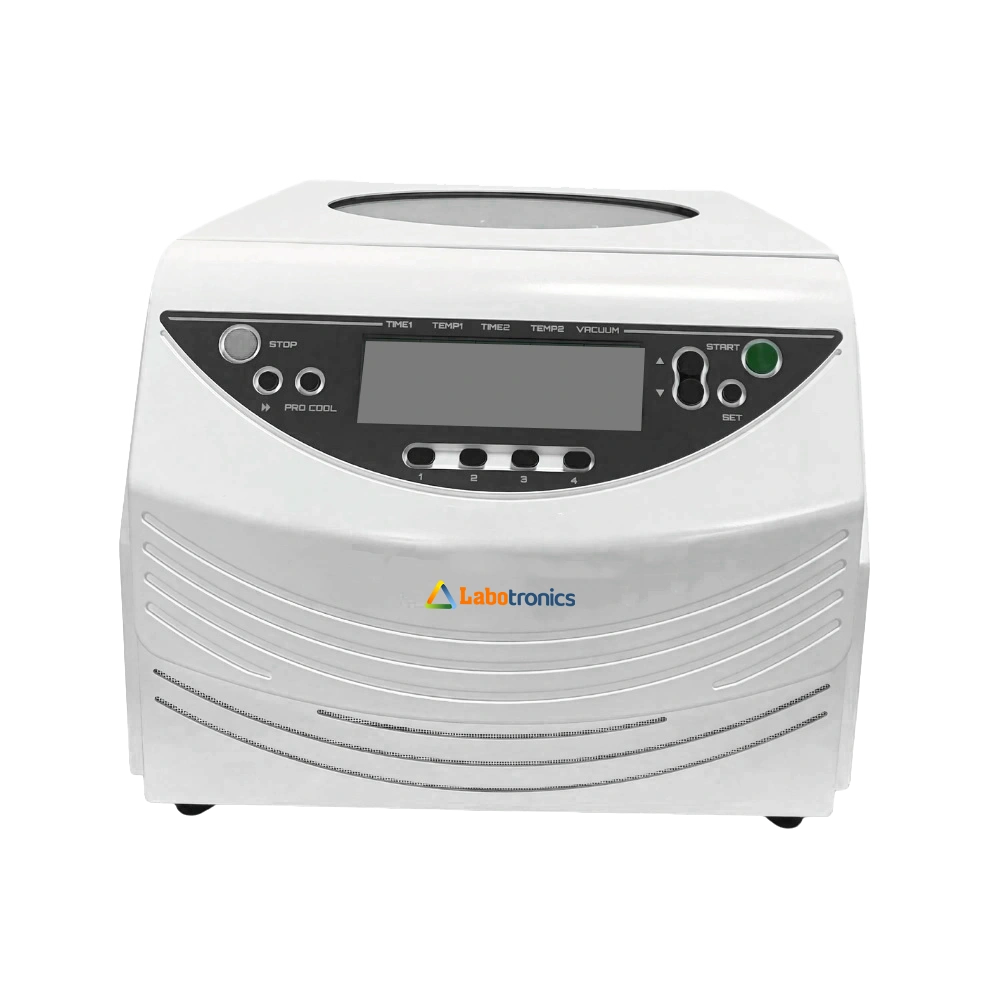

Vacuum Concentrator Centrifuge LB-11VCC

Vacuum Concentrator Centrifuge LB-11VCC

Vacuum Concentrator Centrifuge LB-11VCC offers a speed range of 800 to 2000 rpm and a maximum RCF of 530 × g, enabling efficient evaporation of organic samples. It has a dual-stage temperature control for accurate heating and sample protection. It includes an anti-corrosion vacuum meter for reliable solvent evaporation. Our centrifuge features a touchscreen display, allowing intuitive navigation of operational parameters.

Get Quote Download Catalog

Specifications

Speed Range 800 rpm to 2000 rpm
Maximum RCF 530 × g
Temperature Control Range RT 5℃ to 100℃
Maximum Vacuum Level <13mbar
Pumping Speed 33 L/min
Timer Range 0 to 9999min
Noise Level ≤ 60dB(A)
Power Consumption 660W
Power Supply AC220v 50Hz/60Hz 10A
Dimension (L × D × H) 608 × 370 × 348 mm
Weight 37.9 kg

Features

  • Waste gas discharge system

  • Anti-corrosion diaphragm pump

  • Overheat protection system

  • 30 customizable user programs

  • Automated pressure relief

Applications

Vacuum Concentrator Centrifuge LB-11VCC is used for sample preparation, including DNA/RNA concentration, protein purification, oligonucleotide processing, and metabolite analysis. It is ideal for use in molecular biology, biochemistry, pharmaceutical research, and clinical laboratories.

Vacuum Concentrator Centrifuge LB-11VCC
Vacuum Concentrator Centrifuge LB-11VCC

Get Quote

Frequently asked questions For

1. What is the main purpose of the LB-11VCC Vacuum Concentrator Centrifuge?

The Labotronics Vacuum Concentrator Centrifuge LB-11VCC is used to rapidly concentrate and dry small-volume biological or chemical samples. It is widely used in molecular biology and analytical labs for removing solvents without damaging heat-sensitive materials.

2. Can the LB-11VCC handle heat-sensitive samples?

Yes, the LB-11VCC is suitable for concentrating heat-sensitive samples. It gently removes solvents without harming delicate biological or chemical materials, ensuring the integrity of the samples during the concentration process.

3. Is this vacuum concentrator suitable for multiple lab applications?

Absolutely, it is commonly used in molecular biology, genomics, proteomics, clinical diagnostics, and pharmaceutical research for efficient solvent removal.

4. Can this unit be used with solvents like ethanol or methanol?

Yes, it is designed to safely handle volatile solvents commonly used in molecular biology, including ethanol, methanol, and isopropanol.

5. How long does it take to concentrate samples with LB-11VCC?

The concentration time with the LB-11VCC varies depending on the solvent type, sample volume, and lab conditions. The system allows time adjustment to ensure reliable and consistent results across different sample types.

6. What are vacuum concentrator centrifuges used for?

Vacuum concentrator centrifuges utilize vacuum pressure, gentle heat, and centrifugal force to efficiently remove solvents from biological and chemical samples. Labotronics provides a variety of centrifuges designed to effectively concentrate samples while maintaining the integrity of sensitive materials.

7. Where can I use vacuum concentrator centrifuges?

These centrifuges are commonly used in biological research labs, pharmaceutical companies, chemical analysis facilities, and university laboratories. They are especially useful for processing multiple samples that require fast and controlled evaporation.

8. Are vacuum concentrator centrifuges suitable for delicate or heat-sensitive samples?

Yes, we offer vacuum concentrator centrifuges that are perfect for delicate, heat-labile samples. The low-pressure vacuum environment minimizes heat exposure, helping maintain sample integrity throughout the process.

9. How do Labotronics vacuum concentrator centrifuges improve sample processing?

Our centrifuges reduce evaporation times, increase throughput, and lower contamination risks. This leads to more efficient workflows and consistent, reproducible results across all samples.
