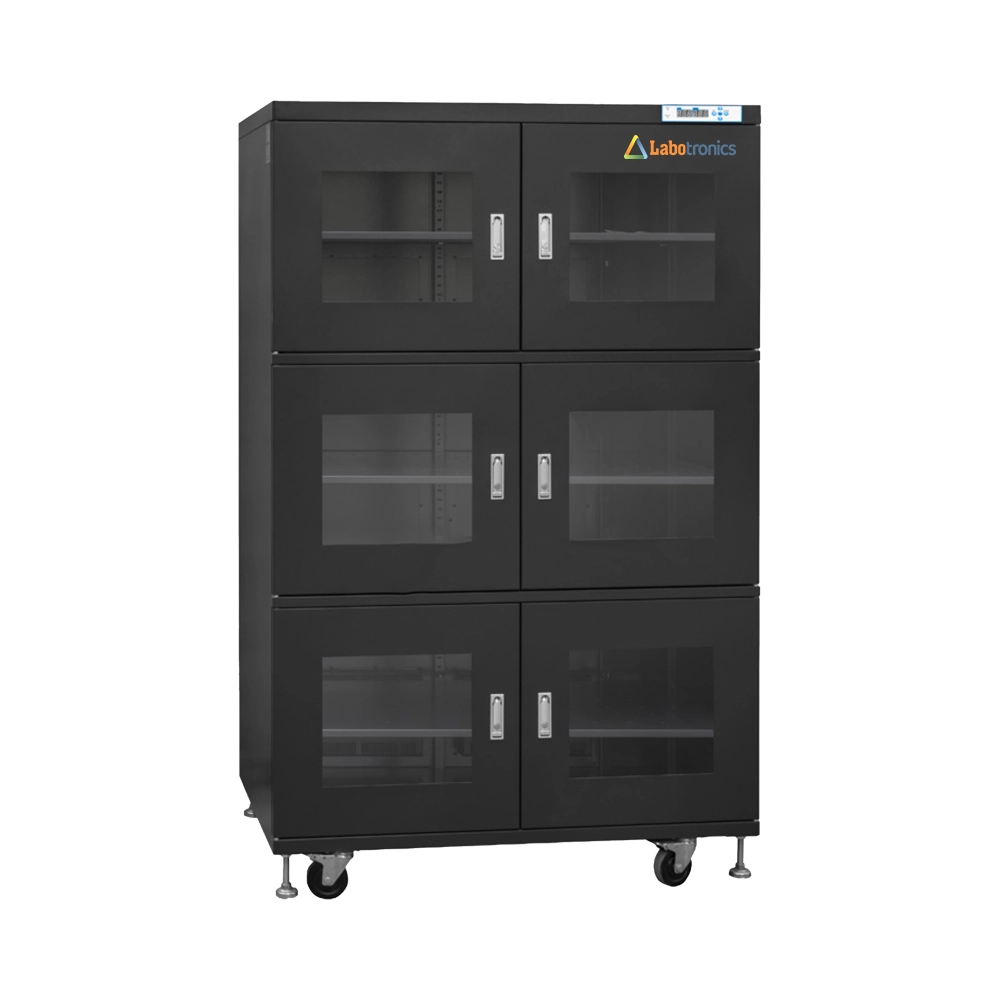

Drying Cabinet LB-20DC operates within a humidity range of 20 to 60% RH and offers a 1436L storage capacity for precisely storing moisture-sensitive materials. It accommodates a maximum load of 100 kg per shelf, ensuring reliable storage. It has a humidity and temperature sensor, providing stable storage conditions. Additionally, our cabinet includes a data logging system, enabling users to track humidity and temperature variations.
Get Quote Download CatalogSpecifications
| Capacity | 1436L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 25W |
| Inner Dimension (W × D × H) | 1198 × 682 × 1723 mm |
| Outer Dimension (W × D × H) | 1200 × 710 × 1910 mm |
| Net Weight | 144 kg |
| Gross Weight | 189 kg |
Features
Adjustable shelving system
Over-humidity alarm
Pressurized lock system
Door-open alert system
Automatic humidity regulation
Durable steel construction
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-20DC is used for preserving and storing moisture-sensitive materials. It is widely applied in electronics manufacturing, semiconductor industries, research laboratories, and PCB assembly
| Capacity | 1436L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 435L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 1436L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 240L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 50 kg/shelf |
| Capacity | 540L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 540L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 98L |
| Humidity Range | 10 to 20%RH (Adjustable) |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
.webp "Drying Cabinet LB-17DC")
| Capacity | 718L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 160L |
| Humidity Range | 10 to 20%RH (Adjustable) |
| Number of Shelves | 3 pc |
| Maximum Load Capacity | 50 kg/shelf |
| Capacity | 320L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 1436L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 1436L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 98L |
| Humidity Range | < 5%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
| Capacity | 540L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 240L |
| Humidity Range | 10 to 20%RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 50 kg/shelf |
