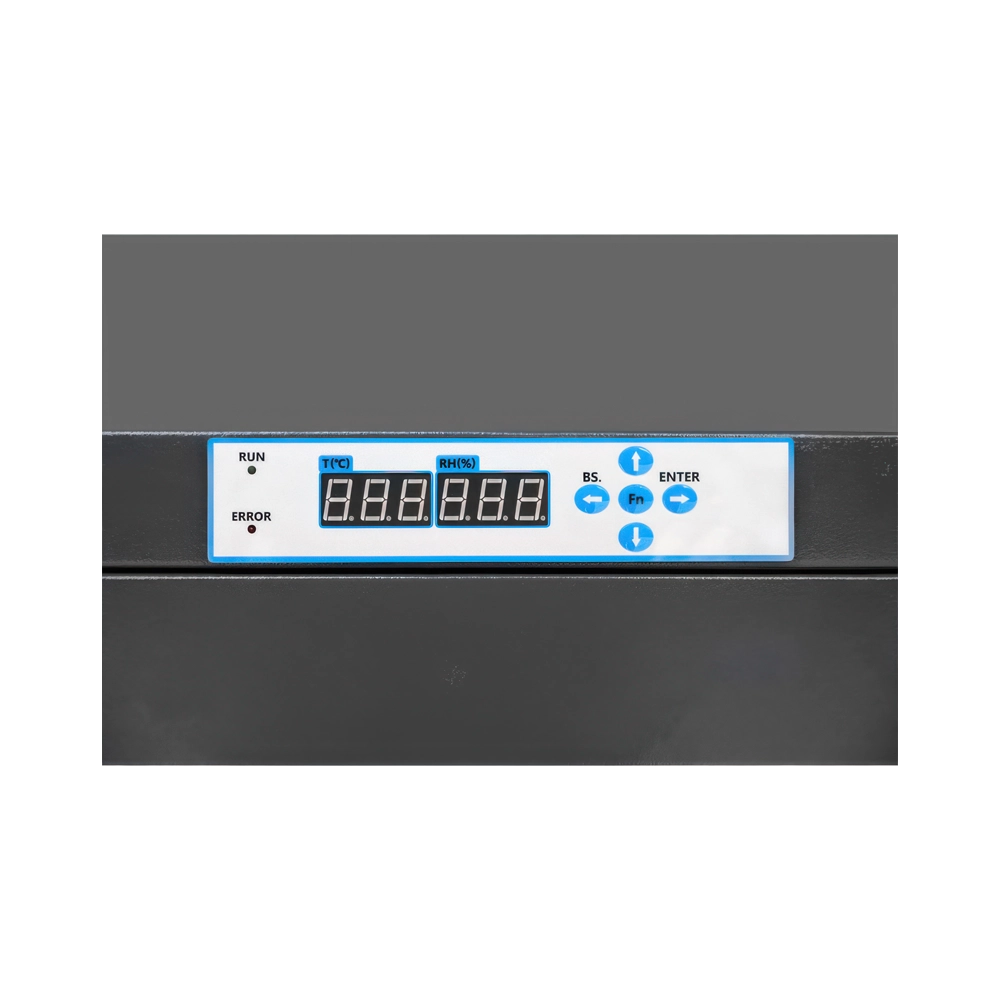

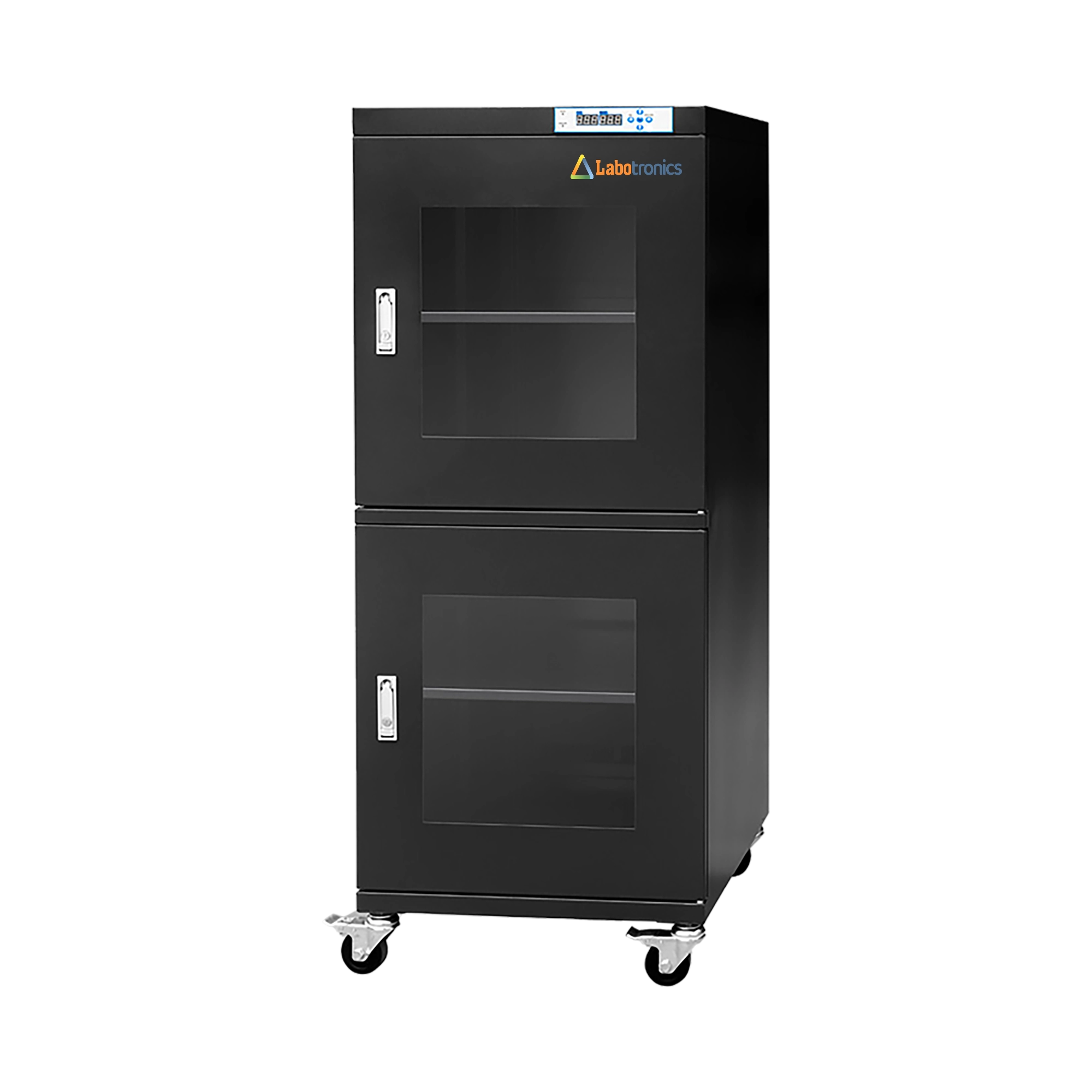

Drying Cabinet LB-62DC provides a capacity of 540L and maintains humidity control below 3% RH, ensuring precise storage for sensitive electronics. It supports rapid humidity recovery and enables ultra-low humidity storage conditions. The cabinet features a flat-press locking mechanism, offering excellent airtightness and theft protection. Additionally, it includes high-precision temperature and humidity sensors for real-time monitoring and control.
Get Quote Download CatalogSpecifications
| Capacity | 540L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 10W |
| Inner Dimension (W × D × H) | 596 × 682 × 1298 mm |
| Outer Dimension (W × D × H) | 598 × 710 × 1465 mm |
| Net Weight | 68 kg |
| Gross Weight | 95 kg |
Features
ESD-safe coating
High load capacity
Memory function
Tempered glass window
Durable dry unit
Corrosion resistant
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-62DC is used for storing moisture-sensitive electronic components like PCBs, ICs, and semiconductors in ultra-low humidity conditions. It is widely used in electronics manufacturing, SMT workshops, laboratories, and cleanrooms.
| Capacity | 1436L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 870L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 98L |
| Humidity Range | < 10%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
| Capacity | 98L |
| Humidity Range | < 5%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
| Capacity | 1436L |
| Humidity Range | 1 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 718L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 1436L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 540L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 320L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 1436L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 165 L |
| Humidity Range | 15 to 50 % RH |
| Display Precision | + 3% RH, +1°C |
| Shelves | 3 shelves |
| Capacity | 1436L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 870L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 240L |
| Humidity Range | 10 to 20%RH (Adjustable) |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 50 kg/shelf |
| Capacity | 98L |
| Humidity Range | 10 to 20%RH (Adjustable) |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
