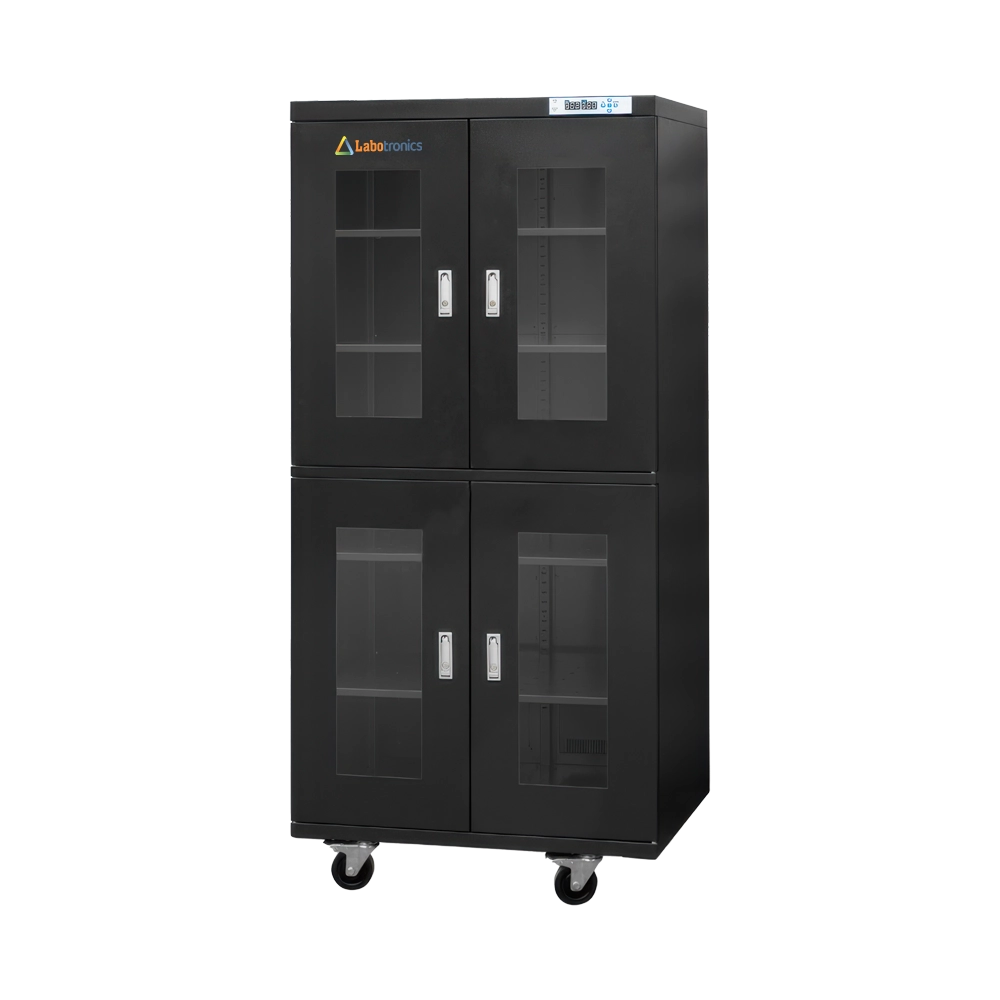

Drying Cabinet LB-57DC offers a large 870L capacity with automatic humidity control below 5%RH, ensuring optimal storage for sensitive electronics. It features five sturdy shelves, each capable of holding up to 100 kg for organized storage. It provides reliable ESD protection for stored components. It features a high-precision humidity and temperature sensor for accurate monitoring and control.
Get Quote Download CatalogSpecifications
| Capacity | 870L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 15W |
| Inner Dimension (W × D × H) | 898 × 572 × 1698 mm |
| Outer Dimension (W × D × H) | 900 × 600 × 1890 mm |
| Net Weight | 110 kg |
| Gross Weight | 130 kg |
Features
Tempered glass window
Memory function
Energy-efficient unit
Universal castor
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-57DC is ideal for secure and precise storage of moisture-sensitive electronic components under ultra-low humidity conditions. It is widely used in semiconductor manufacturing, electronics assembly lines, and research laboratories.
