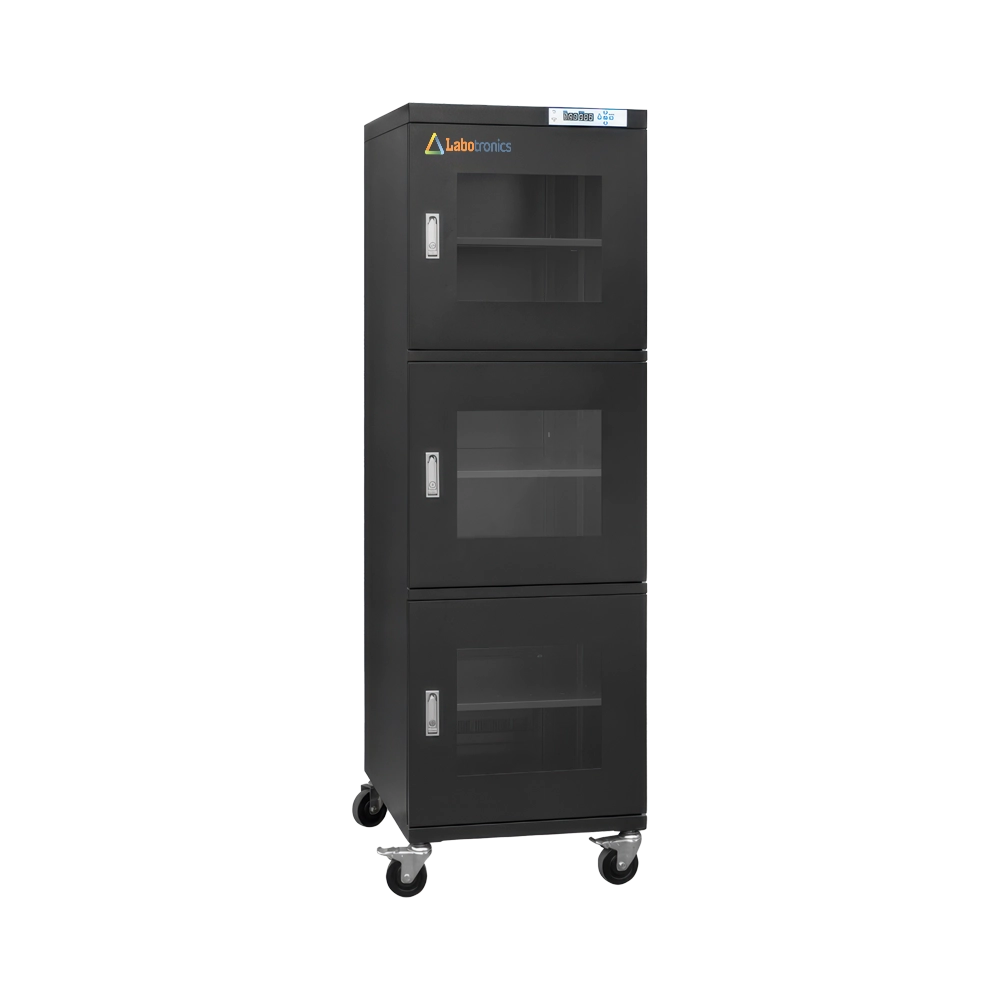

Drying Cabinet LB-63DC offers a capacity of 718 liters and maintains an automatic humidity range of less than 3% RH. It is equipped with five shelves, supporting up to 80 kg per shelf, allowing flexible and secure storage. It features a precision temperature and humidity sensor, ensuring consistent monitoring of internal conditions. Our drying cabinet provides ultra-low humidity protection for safely storing sensitive electronics.
Get Quote Download CatalogSpecifications
| Capacity | 718L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Recovery Time | Maximum 30 min recovery after a 30-sec door opening (Ambient 25℃, 60%RH) |
| Material | 1.2 mm thick galvanized steel with ESD-safe coating |
| Power Consumption | 15W |
| Inner Dimension (W × D × H) | 596 × 682 × 1723 mm |
| Outer Dimension (W × D × H) | 598 × 710 × 1910 mm |
| Net Weight | 84 kg |
| Gross Weight | 105 kg |
Features
Heavy load capacity
Quick humidity recovery
Anti-theft locking system
Tempered glass window
ESD-safe coating
Optional Accessories
Over-Humidity Buzzer Alarm
Open Door Buzzer Alarm
Three-Color Flashing Light Alarm
Data Logging System with USB Interface
Extra Shelf
Applications
Drying Cabinet LB-63DC is used for securely storing moisture-sensitive components like SMT parts, ICs, and optical devices. It is ideal for electronics manufacturing, laboratories, and precision assembly areas.
| Capacity | 870L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 540L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 718L |
| Humidity Range | 10 to 20% RH (Adjustable) |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 870L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 165 L |
| Humidity Range | 15 to 50 % RH |
| Display Precision | + 3% RH, +1°C |
| Shelves | 3 shelves |
| Capacity | 870L |
| Humidity Range | < 5% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 160L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 50 kg/shelf |
| Capacity | 1436L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 5pcs |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 98L |
| Humidity Range | < 10%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
.webp "Drying Cabinet LB-18DC")
| Capacity | 870L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 100 kg/shelf |
| Capacity | 540L |
| Humidity Range | < 10% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 98L |
| Humidity Range | < 5%RH Automatic |
| Number of Shelves | 1pc |
| Maximum Load Capacity | 50 kg/shelf |
| Capacity | 540L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 3pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
.webp "Drying Cabinet LB-17DC")
| Capacity | 718L |
| Humidity Range | 20 to 60% RH (Adjustable) |
| Number of Shelves | 5pcs (Height adjustable) |
| Maximum Load Capacity | 80 kg/shelf |
| Capacity | 435L |
| Humidity Range | < 3% RH Automatic |
| Number of Shelves | 3pcs |
| Maximum Load Capacity | 80 kg/shelf |
