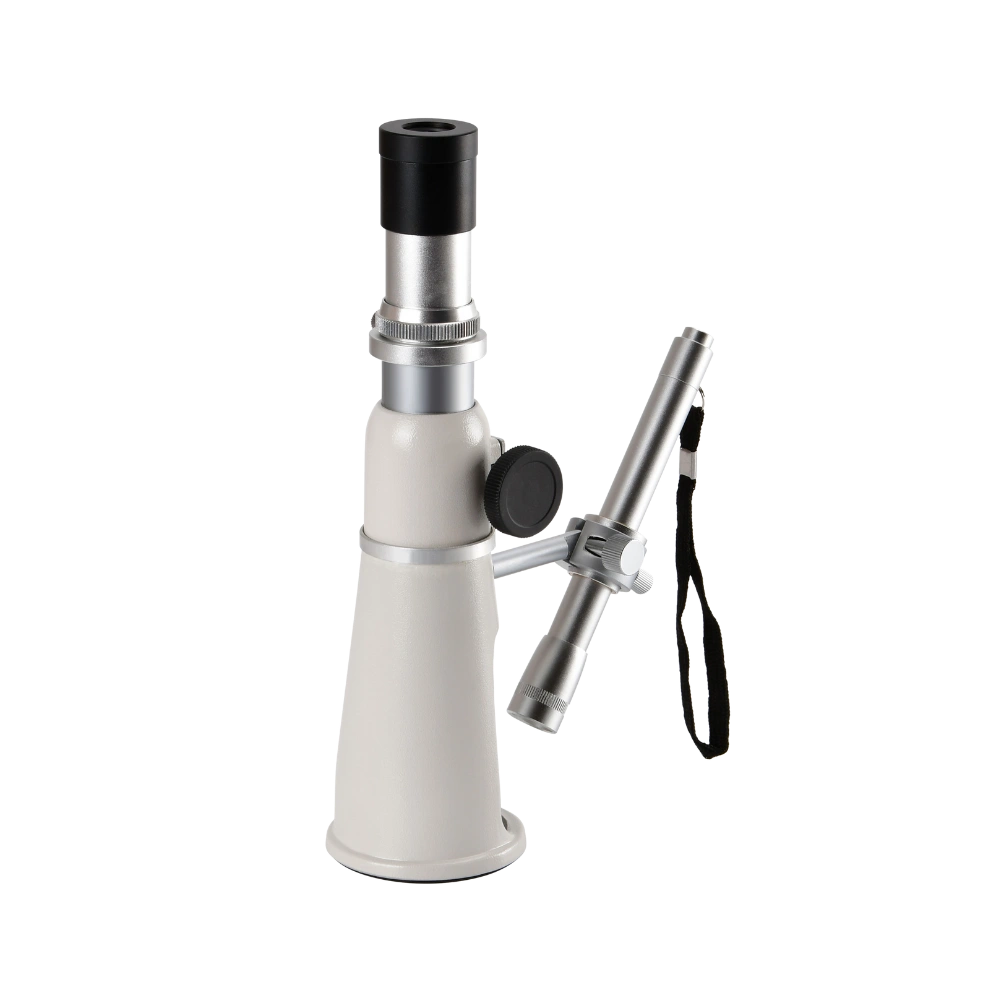

Portable Measuring Microscope LB-14PET offers a magnification of 100x, enabling detailed observation of fine sample structures. It features a 10x objective lens, enabling clear and focused viewing of samples. It has a 30 mm focusing range, enabling smooth and precise adjustment of sample positions. Our microscope is equipped with a compact pen light, providing bright illumination to improve image clarity during measurements.
Get Quote Download CatalogSpecifications
| Magnification | 100x |
| Objective | 10x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.01 mm |
| Numerical Aperture | 0.25 |
| Mechanical Tube Length | 160 mm |
| Working Distance | 6.93 mm |
| Light Source | Pen Light |
| Power Supply | AAA Battery |
| Product Dimension | 63 × 210 mm |
| Packaging Dimension | 690 × 270 × 220 mm |
| Net Weight | 5.8 kg |
| Gross Weight | 6.8 kg |
Features
Wide-field eyepiece
Integrated reticle micrometer
Smooth focusing mechanism
Fine measurement accuracy
High numerical aperture
Applications
Portable Measuring Microscope LB-14PET is suitable for precise measurement and inspection of small samples. It is commonly utilized in laboratories, workshops, and quality control facilities.
Frequently asked questions For
1. What is a portable measuring microscope?
A portable measuring microscope is a compact, handheld optical instrument designed to magnify and precisely measure small objects and components. It is ideal for accurate inspections and quality control across various industries.
2. What are the ideal applications for portable measuring microscopes?
These microscopes are perfect for measuring tiny mechanical parts, electronic circuit boards, fibers, and other small items that require precise dimensional analysis. Labtronics portable measuring microscopes help professionals ensure quality standards efficiently and reliably.
3. Can Labotronics microscopes be used outdoors or in the field?
Yes, their compact size, battery-powered illumination, and rugged build make them perfect for outdoor or on-site inspections in industries like construction, manufacturing, or utilities.
4. Can Labotronics portable measuring microscopes measure different magnifications?
Yes, Labotronics offers models with a variety of magnifications ranging from 20X to 100X, allowing users to select the ideal zoom level for their specific measurement and inspection needs.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Magnification | 100x |
| Objective | 10x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 20x |
| Objective | 2x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 40x |
| Objective | 4x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 40x |
| Objective | 4x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 50x |
| Objective | 5x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 50x |
| Objective | 5x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 20x |
| Objective | 2x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
