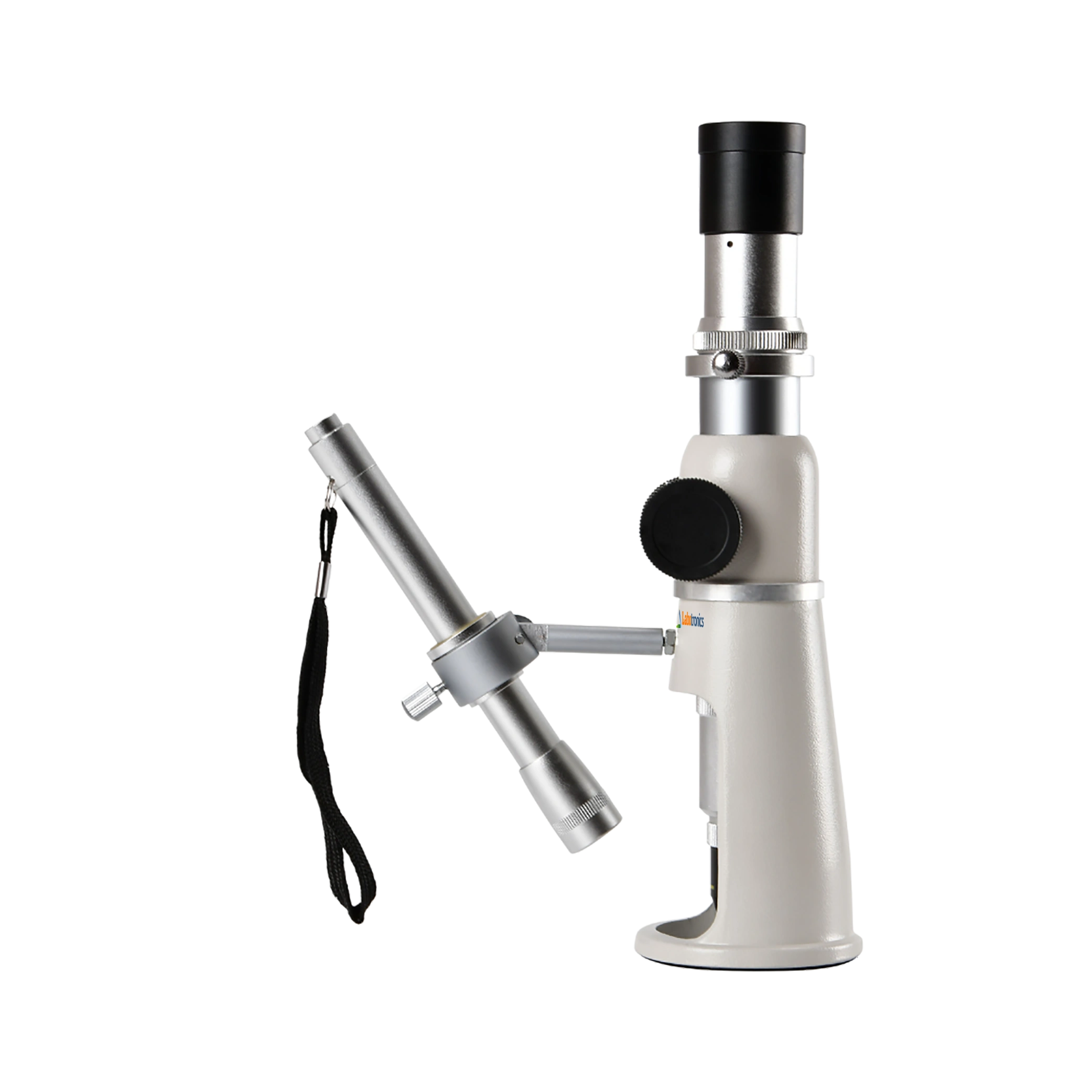

Portable Measuring Microscope LB-17PET offers a magnification of 20x, enabling clear observation of sample structures. It features a 2x objective lens, ensuring focused and detailed viewing of specimens. It has a 0.05 mm micrometer division, enabling precise measurements. Our microscope includes a compact pen light, offering bright illumination for clear observations.
Get Quote Download CatalogSpecifications
| Magnification | 20x |
| Objective | 2x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Micrometer Division | 0.05 mm |
| Numerical Aperture | 0.05 |
| Mechanical Tube Length | 160 mm |
| Working Distance | 17.2 mm |
| Light Source | Pen Light |
| Power Supply | AAA Battery |
| Product Dimension | 63 × 210 mm |
| Packaging Dimension | 690 × 270 × 220 mm |
| Net Weight | 5.8 kg |
| Gross Weight | 6.8 kg |
Features
Applications
Portable Measuring Microscope LB-17PET is suitable for observing and measuring small sample structures with precision. It is widely used in laboratories, educational institutions, and quality control facilities.
Frequently asked questions For
1. What is a portable measuring microscope?
A portable measuring microscope is a compact, handheld optical instrument designed to magnify and precisely measure small objects and components. It is ideal for accurate inspections and quality control across various industries.
2. What are the ideal applications for portable measuring microscopes?
These microscopes are perfect for measuring tiny mechanical parts, electronic circuit boards, fibers, and other small items that require precise dimensional analysis. Labtronics portable measuring microscopes help professionals ensure quality standards efficiently and reliably.
3. Can Labotronics microscopes be used outdoors or in the field?
Yes, their compact size, battery-powered illumination, and rugged build make them perfect for outdoor or on-site inspections in industries like construction, manufacturing, or utilities.
4. Can Labotronics portable measuring microscopes measure different magnifications?
Yes, Labotronics offers models with a variety of magnifications ranging from 20X to 100X, allowing users to select the ideal zoom level for their specific measurement and inspection needs.
Still have questions?
If you cannot find answer to your question in our FAQ, you can always
contact us. We will answer shortly!
| Magnification | 50x |
| Objective | 5x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 100x |
| Objective | 10x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 20x |
| Objective | 2x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 50x |
| Objective | 5x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 40x |
| Objective | 4x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 40x |
| Objective | 4x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
| Magnification | 100x |
| Objective | 10x |
| Eyepiece | WF10x/18mm Reticle Eyepiece, with 0.1x Micrometer |
| Focusing Range | 30 mm |
