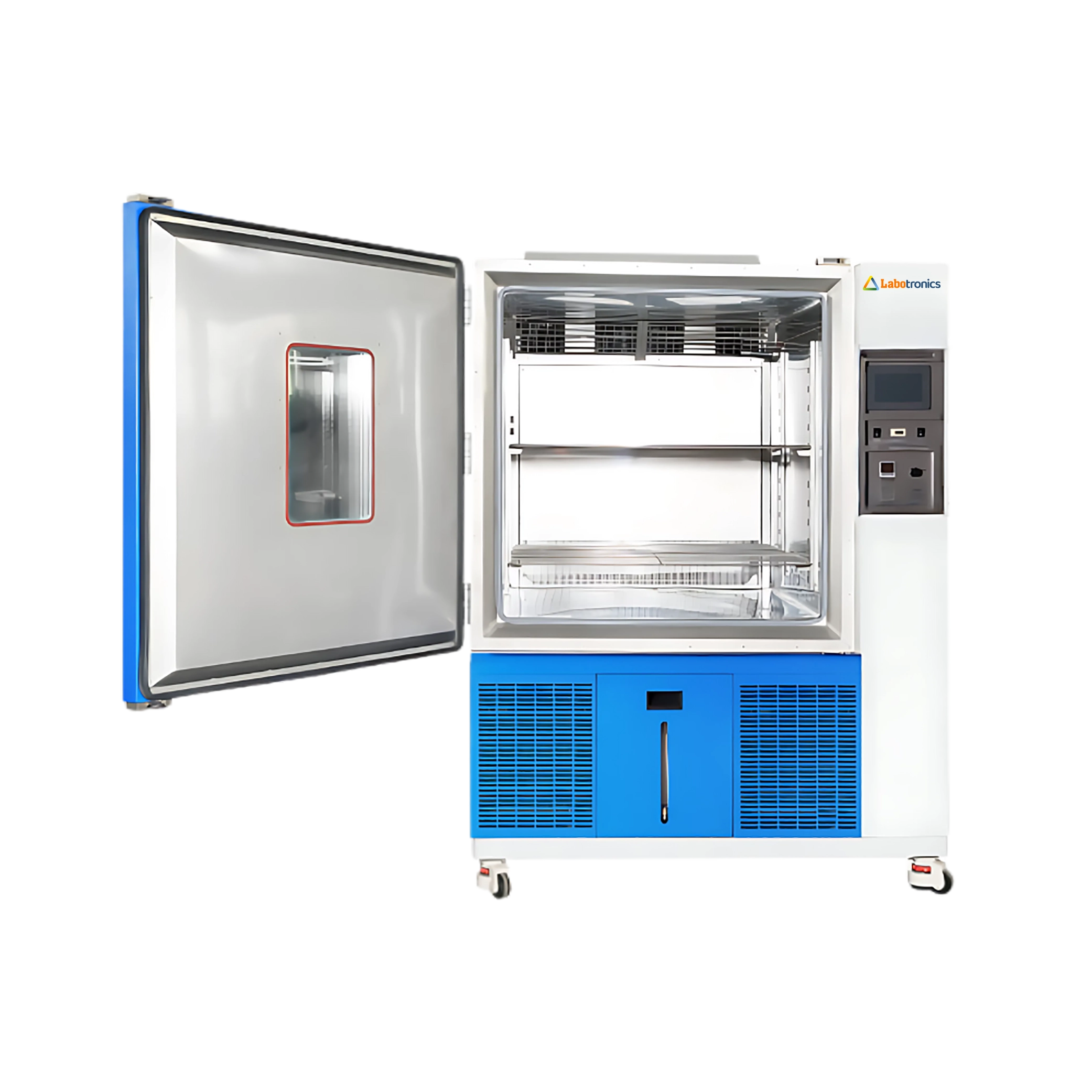

Temperature and Humidity Test Chamber LB-14CTH

Temperature And Humidity Test Chamber LB-14THC

Name: Temperature And Humidity Test Chamber LB-14THC
Brand: Labotronics
SKU: LB-14THC
Rating: 4.6 (581 reviews)

Temperature and Humidity Test Chamber LB-14THC offers a 500L testing capacity with a temperature range of up to 100°C. It features R404A/R23 refrigerants and refrigeration dehumidification for efficient cooling. It has a multi-leaf centrifugal fan, ensuring uniform temperature and humidity distribution. Our test chamber includes a 7-inch touchscreen controller, allowing real-time monitoring of test parameters.

Get Quote Download Catalog

Specifications

Capacity	500L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C
Humidity Range	20% to 98% R.H
Humidity Deviation	+2/-3% R.H
Heating Rate	2.0 to 3.0°C/min
Cooling Rate	0.7 to 1.0°C/min
Refrigerant	R404A/R23
Humidification System	Shallow slot steam
Dehumidification System	Refrigeration dehumidification mode
Heating System	NiCr heater
Circulation System	Single-cycle, stainless-steel fan
Display	7-inch Touch Screen Controller
Interior	Anti-corrosion SUS 304 mirror stainless steel
Exterior	Reinforced steel plate with electrostatic spraying
Insulation	Fiberglass wool/polyurethane foam
Power Supply	220V 50/60Hz, 380V 50/60Hz or customized
Inner Dimension (W × D × H)	800 × 700 × 900 mm
Outer Dimension (W × D × H)	1350 × 1300 × 2200 mm
Weight	590 kg

Features

Shallow slot humidification
Customizable settings
Water shortage alarm
User-friendly interface
Durable construction

Applications

Temperature and Humidity Test Chamber LB-14THC is used to simulate extreme environmental conditions for testing material and product durability in electronics, aerospace, automotive, and pharmaceutical industries.

Get Quote

1. What is a Temperature and Humidity Test Chamber?

Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.

2. Do you offer different types of temperature and humidity test chambers?

Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.

3. How do I choose the right chamber for my application?

It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.

4. Are your chambers suitable for long-duration tests?

Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.

Temperature And Humidity Test Chamber LB-25THC

Capacity	800L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-20THC

Capacity	50L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ± 0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-74THC

Capacity	1000L
Temperature Range	-40°C to 150°C
Temperature Fluctuation	± 0.5℃
Temperature deviation	≤ ± 2.0℃

Temperature And Humidity Test Chamber LB-12THC

Capacity	150L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-72THC

Capacity	408L
Temperature Range	-40°C to 150°C
Temperature Fluctuation	± 0.5℃
Temperature deviation	≤ ± 2.0℃

Temperature and humidity test chamber LB-82THC

Chamber capacity	408 L
Interior dimensions (W x H x D)	700 x 750 x 800 mm
Exterior dimensions (W x H x D)	980 x 1940 x 1740 mm
Temperature range	( -20 °C to 150 °C )

Temperature And Humidity Test Chamber LB-22THC

Capacity	150L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-26THC

Capacity	1000L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-70THC

Capacity	150 L
Temperature Range	-40°C to 150°C
Temperature Fluctuation	± 0.5℃
Temperature deviation	≤ ± 2.0℃

Temperature And Humidity Test Chamber LB-71THC

Capacity	225L
Temperature Range	-40°C to 150°C
Temperature Fluctuation	± 0.5℃
Temperature deviation	≤ ± 2.0℃

Temperature And Humidity Test Chamber LB-15THC

Capacity	800L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-10THC

Capacity	50L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ± 0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-16THC

Capacity	1000L
Temperature Range	0 to 100°C
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C

Temperature And Humidity Test Chamber LB-73THC

Capacity	800L
Temperature Range	-40°C to 150°C
Temperature Fluctuation	± 0.5℃
Temperature deviation	≤ ± 2.0℃

Temperature And Humidity Test Chamber LB-24THC

Capacity	500L
Temperature Range	0 to 150°C -20°C to 150°C (Customizable) - 40°C to 150°C (Customizable) - 70°C to 150°C (Customizable)
Temperature Fluctuation	≤ ±0.5°C
Temperature Uniformity	≤ 2.0°C
