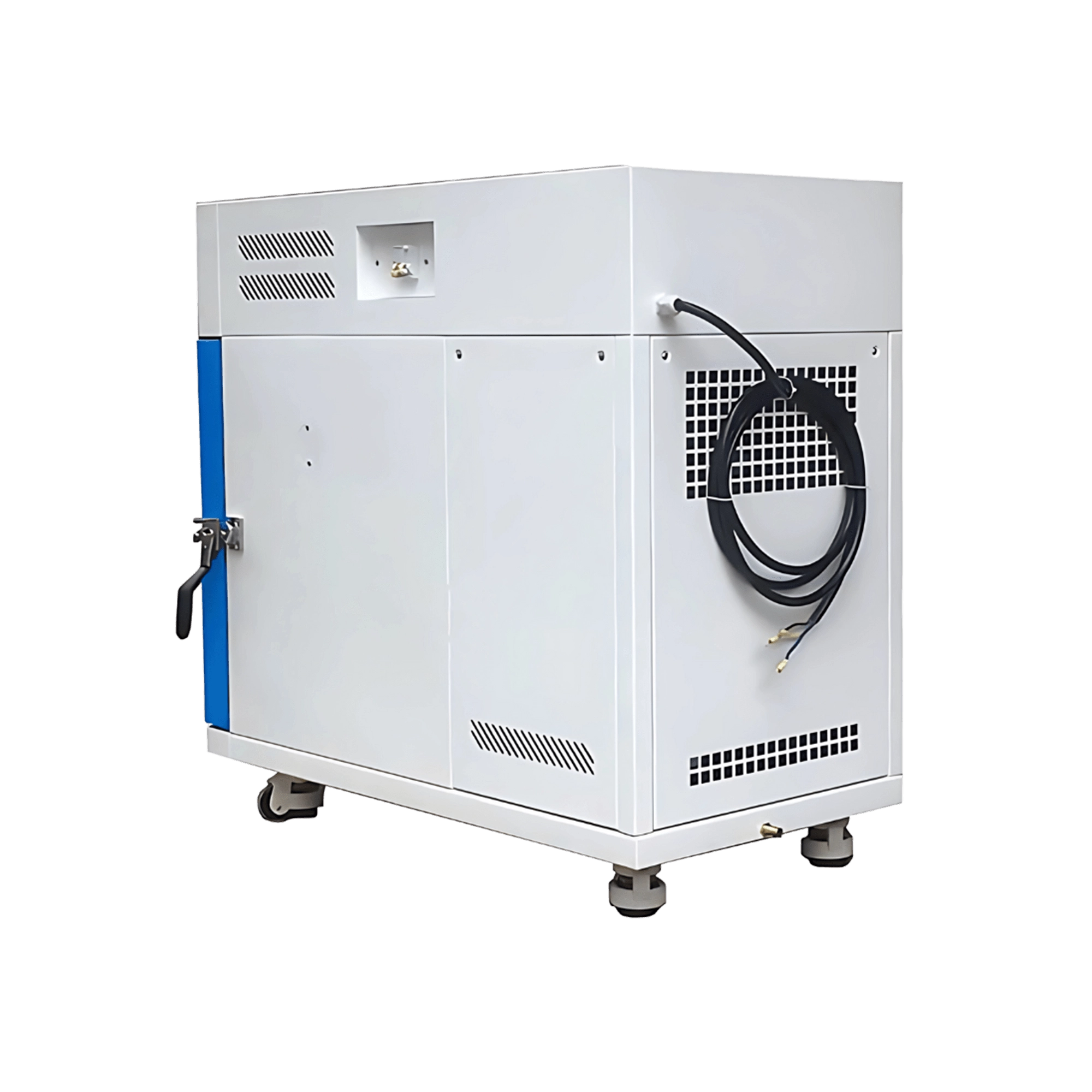

Temperature and Humidity Test Chamber LB-31CTH

Temperature And Humidity Test Chamber LB-31THC

Name: Temperature And Humidity Test Chamber LB-31THC
Brand: Labotronics
SKU: LB-31THC
Rating: 4.8 (547 reviews)

Temperature and Humidity Test Chamber LB-31THC offers a 50L capacity and a temperature range of -40 to +150°C for reliable product testing. It has a dual cooling mode refrigeration system for efficient cooling. It is equipped with a NiCr heater, ensuring stable and consistent temperature control. Our test chamber features a 7-inch Touch Screen Controller for real-time monitoring of temperature and humidity levels.

Get Quote Download Catalog

Specifications

Capacity	50L
Temperature Range	-40 to 150°C
Temperature Fluctuation	≤ ± 0.5°C
Temperature Uniformity	≤ 2°C
Humidity Range	20% to 98% R.H
Humidity Deviation	+2/-3% R.H
Heating Rate	2.0 to 3.0°C/min
Cooling Rate	0.7 to 1.0°C/min
Temperature Cycling Capability	Programmable 30 °C for 6 hours and 25 °C for 6 hours (repeatable)
Humidification System	Shallow slot steam
Dehumidification System	Refrigeration dehumidification mode
Heating System	NiCr heater
Refrigeration	Unit cooling mode/Dual cooling mode
Circulation System	Single-cycle, stainless-steel fan
Display	7-inch Touch Screen Controller
Interior	Anti-corrosion SUS 304 mirror stainless steel
Exterior	Cold rolled steel plate with electrostatic spraying
Insulation	Fiberglass wool/polyurethane foam
Power	220V·50HZ/60HZ,380V 50HZ/60HZ
Internal Dimension (W × D × H)	350 × 320 × 450 mm
External Dimension (W × D × H)	600 × 1350 × 1100 mm
Weight	100 kg

Features

Wide temperature range
User-friendly interface
Overload protection
Low-noise operation
Easy maintenance
Durable construction

Applications

Temperature and Humidity Test Chamber LB-31THC is ideal for testing the performance and durability of materials, components, and products. It is widely used in electronics, automotive, aerospace, and pharmaceutical industries.

Get Quote

1. What is a Temperature and Humidity Test Chamber?

Temperature and Humidity Test Chamber is a laboratory or industrial device used to simulate environmental conditions by precisely controlling temperature and humidity levels for testing products, materials, or components.

2. Do you offer different types of temperature and humidity test chambers?

Yes, we do! Labotronics offers a wide range of temperature and humidity test chambers, including benchtop models, floor-standing units, and walk-in chambers to meet various environmental testing requirements.

3. How do I choose the right chamber for my application?

It depends on the size of your test sample, the required temperature/humidity range, and your test standards. Our team can help you select the right model based on your specific testing needs and industry requirements.

4. Are your chambers suitable for long-duration tests?

Yes. Our chambers are designed for continuous operation and can run long test cycles ranging from a few hours to several days or weeks, without interruption.
